Lightweight Safe Area Rugged PC
1302-Sa

Request Online Demo

  • The latest addition to HMI Elements’s range of Safe Area HMIs is thin and lightweight
  • Lighter at only 27lb and with a depth of only 3.5” this HMI brings elegance to the Safe Area
  • Light enough to be mounted on a desktop VESA stand
  • Fully operational within a -40°C to +60°C (-40°F to +140°F) temperature range

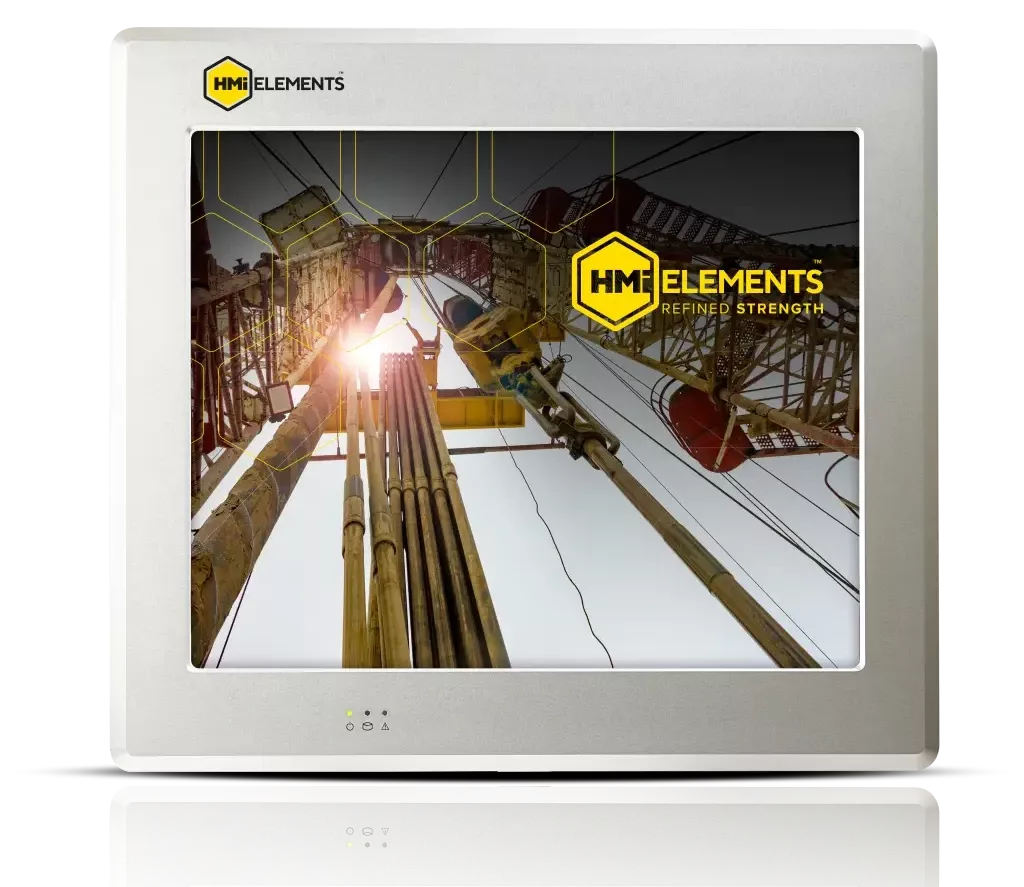

Lightweight Safe Area Rugged PC

 The latest addition to HMI Elements’s range of HMIs is a slim and lightweight rugged PC, with a super high-bright 19”, 1600 NIT multi-touch glove-friendly touchscreen.

Specifications:

  • Powder coated enclosure.
  • DC Power - Terminated with Armoured M20 Peppers Gland
  • x2 USB Ports mounted on the Connector Plate
  • Ethernet 10/100/1000 Mbit/s
  • Windows 10 Enterprise LTSB, Windows 7 Professional Operating system
  • 12 Months Warranty

Standard Features:

  • Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
  • 19" 1600 NIT display
  • Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard
  • Thin: 3.5" profile. Lightweight: 26.9lbs
  • Remote telemetry
  • Built-in diagnostics
  • Clean screen mode
  • Ingress protected to IP66/NEMA 4X
  • Shock in accordance with BS EN60068-2-27:2009
  • Vibration in accordance with BS EN60068-2-6:2008
1302-Sa : ATOM i7
Product Type PC Workstation
Model No HMI Elements1302Sa
Display Size 19"
Display Type Sunlight Viewable Glove-Friendly up to 1500 nit Capacitive LCD Touchscreen
Resolution SXGA; 1280 x 1024, wide viewing angle,  24 bit colour
Processor Options Dual Core Atom 1.86GHz Core i7-3517UE, 1.7GHz  (TPM Compliant)
Operating System Windows 10 Enterprise LTSB, Windows 7 Professional
HDD/SSD Options 64GB SSD (standard)
+ second 64GB SSD (optional)		 64GB SSD (standard) also available 128GB or 256GB SSD
+ second drive 64, 128, 256GB SSD (optional)
RAM 4GB 8GB
+ option to upgrade to 16GB
Comm Options 2 Copper Ethernet port is triple speed (10/100/1000 Mbits/s), Fibre Optic Ethernet, Wi-Fi (802.11 b/g/n)
Keyboard / Mouse / Touchscreen PS/2 Interface
USB 2 x USB ports
Serial Communications One RS232 and one RS422/RS485
Ingress Protection IP66 / NEMA4 and NEMA 4X
Operating Temperature -40°C to +60°C
Storage Temp -40°C to +85°C (-40°F to +185°F)
Weight 26.9Ibs / 12.2kg
Max Dimensions 18.74" x 16.81" x 3.54" / 476mm x 427mm x 90mm
Mounting Options VESA, Yoke, Panel
Shock & Vibration Shock: In accordance with BS EN60068-2-27:2009 Vibration: In accordance with BS. EN60068-2-6:2008
Approvals CE, cCSAus, CSA Certificate Number 70027365, CAN/CSA-C22.2 No. 61010-1-12, ANSI/UL Standard 61010-1

This is a typical Specification; if you have other requirements please Contact Us
