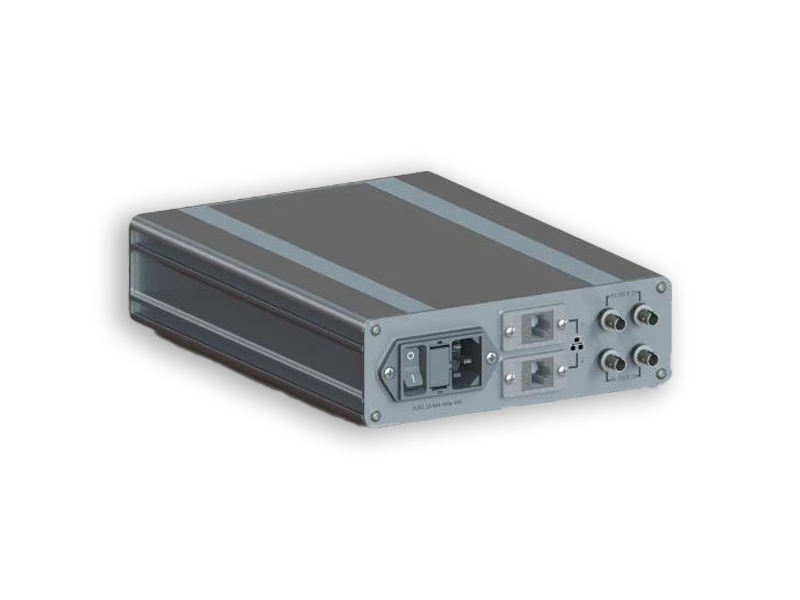

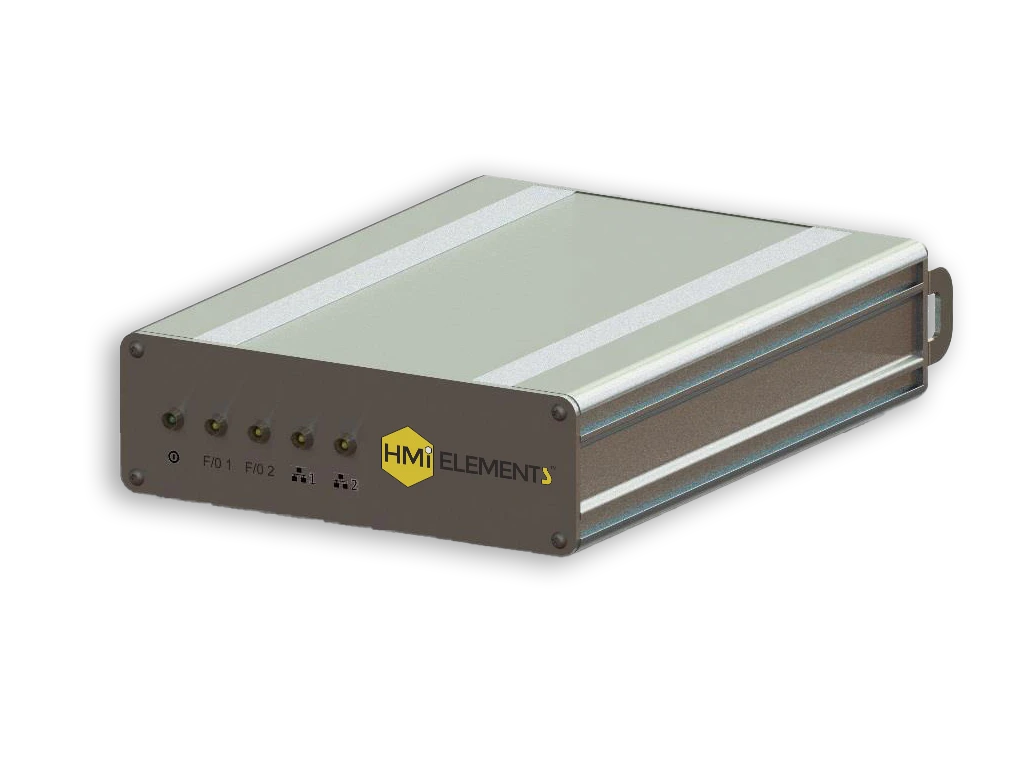

The 1700-Sa is intended for use in Safe Areas. The two fiber-optic ports are designated ‘Ex op is’ – meaning the transmitted optical power is deemed inherently safe according to IEC 60079-28:2015.
Therefore the fiber cables can pass into Zone 2 and Zone 1 areas and connect to suitably approved and compatible link-partners such as HMIs.
The 1700-Sa functions as an un-managed Ethernet switch with both fiber and copper ports inter-connected internally. No configuration is necessary.
| 1700-Sa : | |
|---|---|
| Product Type | Safe-Area op-is Media Converter |
| Model No | 1700-Sa |
| Typical Ex Code | II (2) G [Ex op is] IIC Gb II (2) G [Ex op is] IIC Gb Class I, Zone 1 [Ex ib] IIC Gb Class I, Zone 1 [AEx op is] IIC |
| Power | AC: 100 to 240VAC, 50 to 60 Hz, via standard IEC C14 socket. (UK and US leads supplied) |
| Copper Ethernet Ports | LAN1 and LAN2 ports: 10/100/1000 Auto-negotiation Full/half-duplex Auto-detect Connections: Two RJ45 sockets, Gigabit Ethernet compliant Standards: IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3x Flow Control Transmission Media: 10BaseT Cat.3,4,5 UTP/STP 100BaseTX Cat.5 UTP/STP 1000BaseT Cat.5E UTP/STP |
| Fiber Ports | Standard: IEEE 802.3u Fast Ethernet Fiber Type: Multimode / Dual Fiber (for optimal link budget 62.5/125 micron fiber is recommended) Connections: Two twin ST (IEC 61754-2)sockets Wavelength: 1310nm Link Budget: 11dB |
| Operating Temperature | 0°C to +40°C (32°F to +104°F) |
| Storage Temp | 0°C to +60°C (32°F to +140°F) |
| Humidity | 10 to 90 % non-condensing |
| Weight | 4.4Ibs / 2kg |
| Dimensions | 170(W) x 54(H) x 230(D)mm; 6.7 x 2.1 x 9.1 inches |
| Mounting Options | Desktop mounting with rubber feet on base |
This is a typical Specification; if you have other requirements please Contact Us
