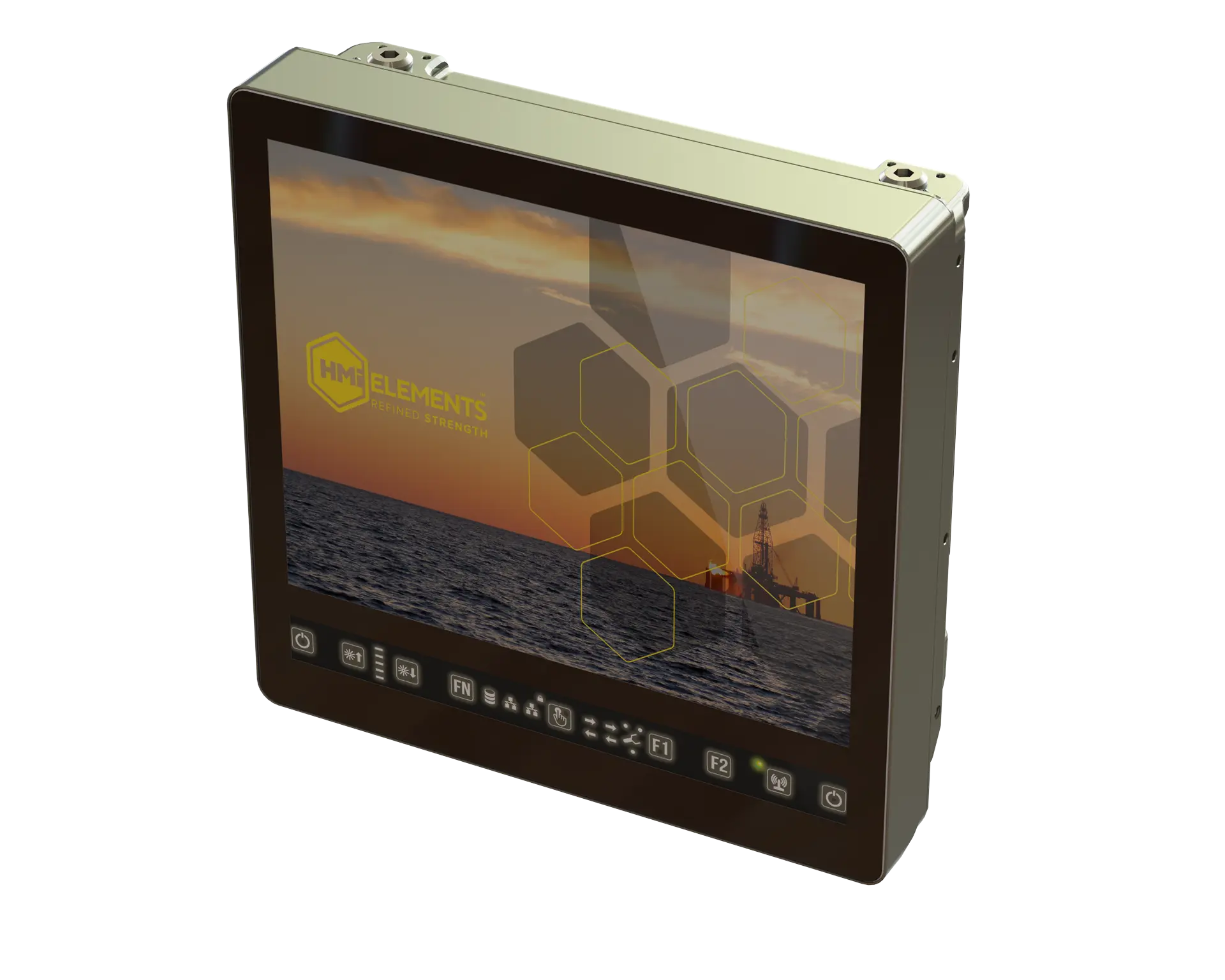

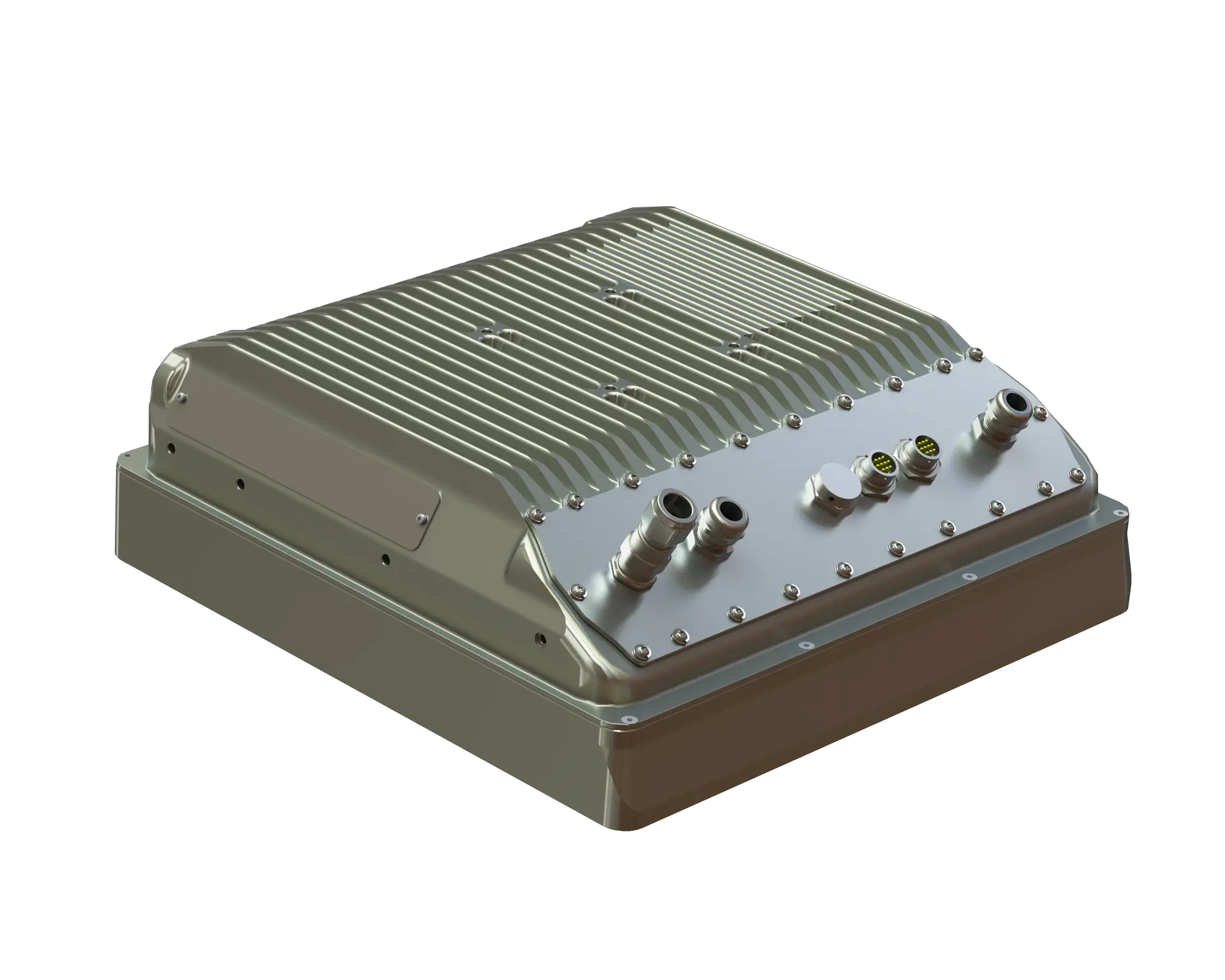

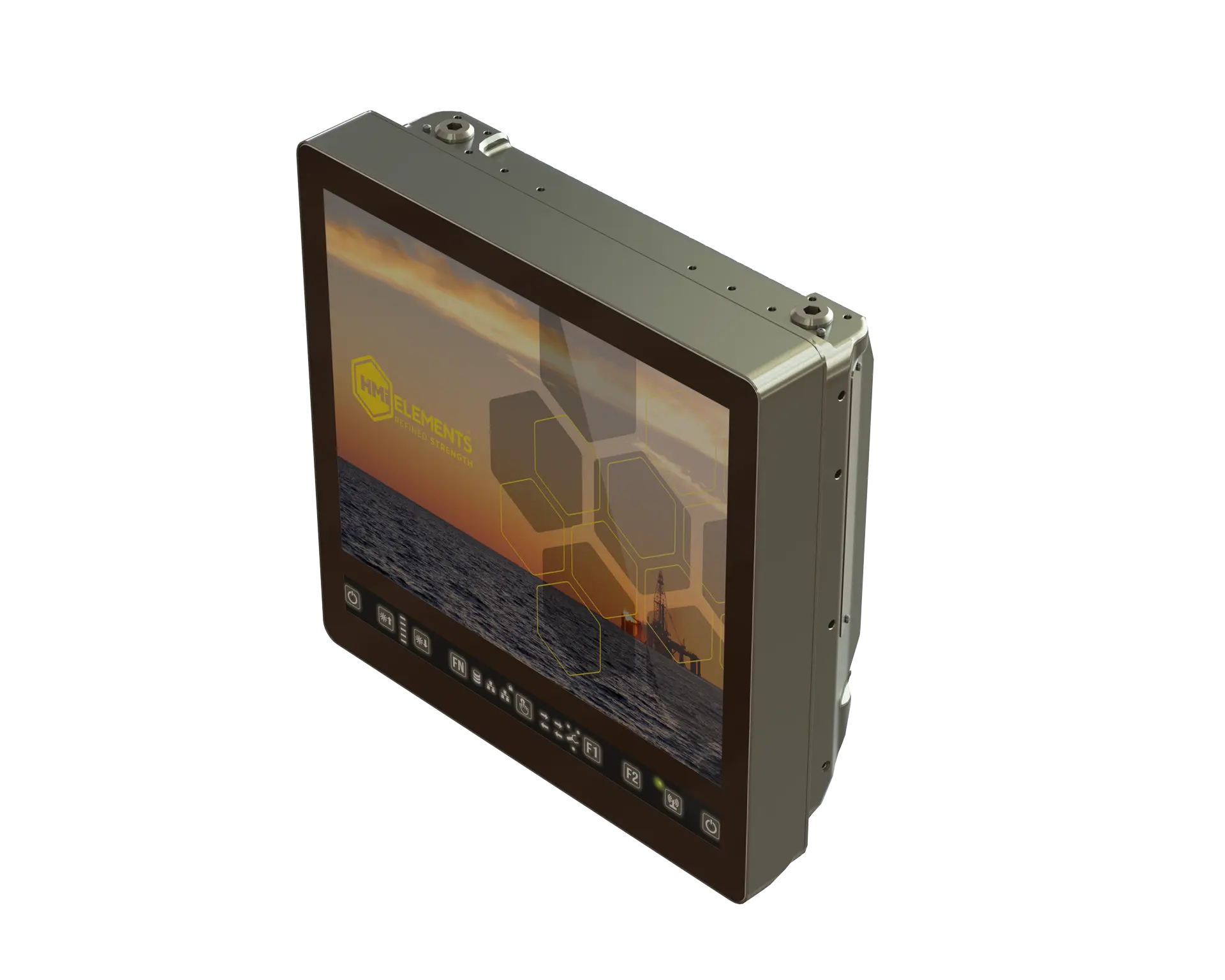

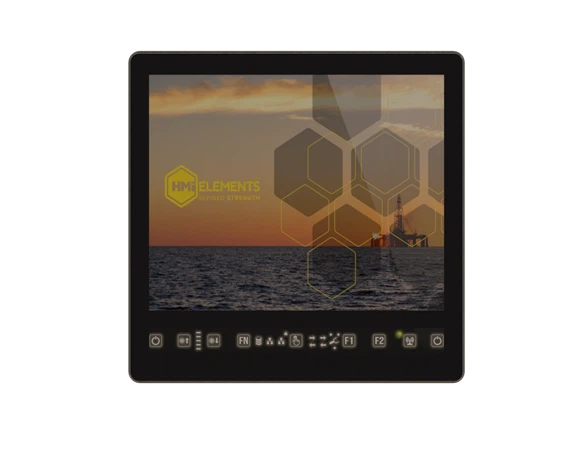

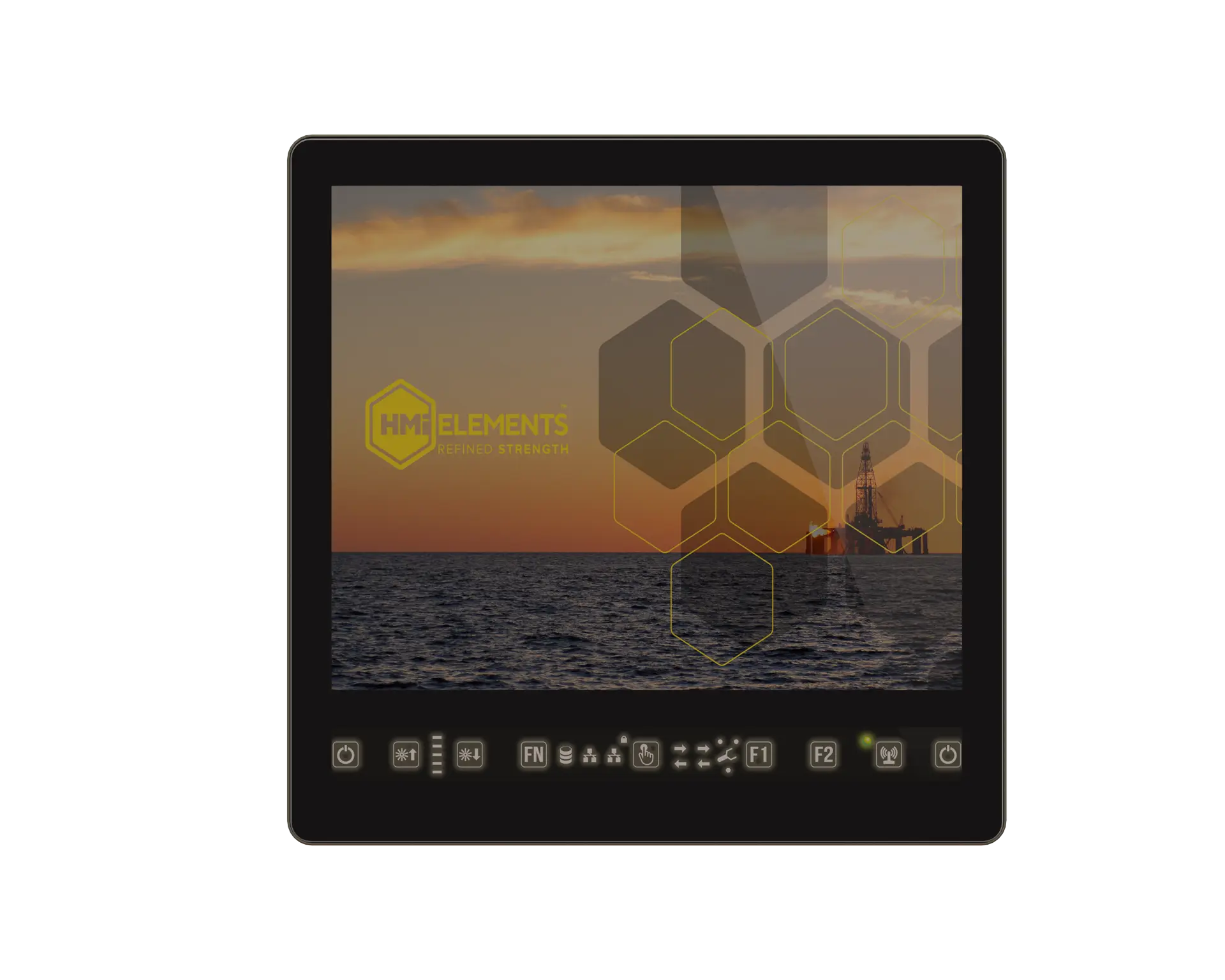

Meet the 1301-Z1, a slim-line ATEX, IECEx, AEx Zone 1 HMI

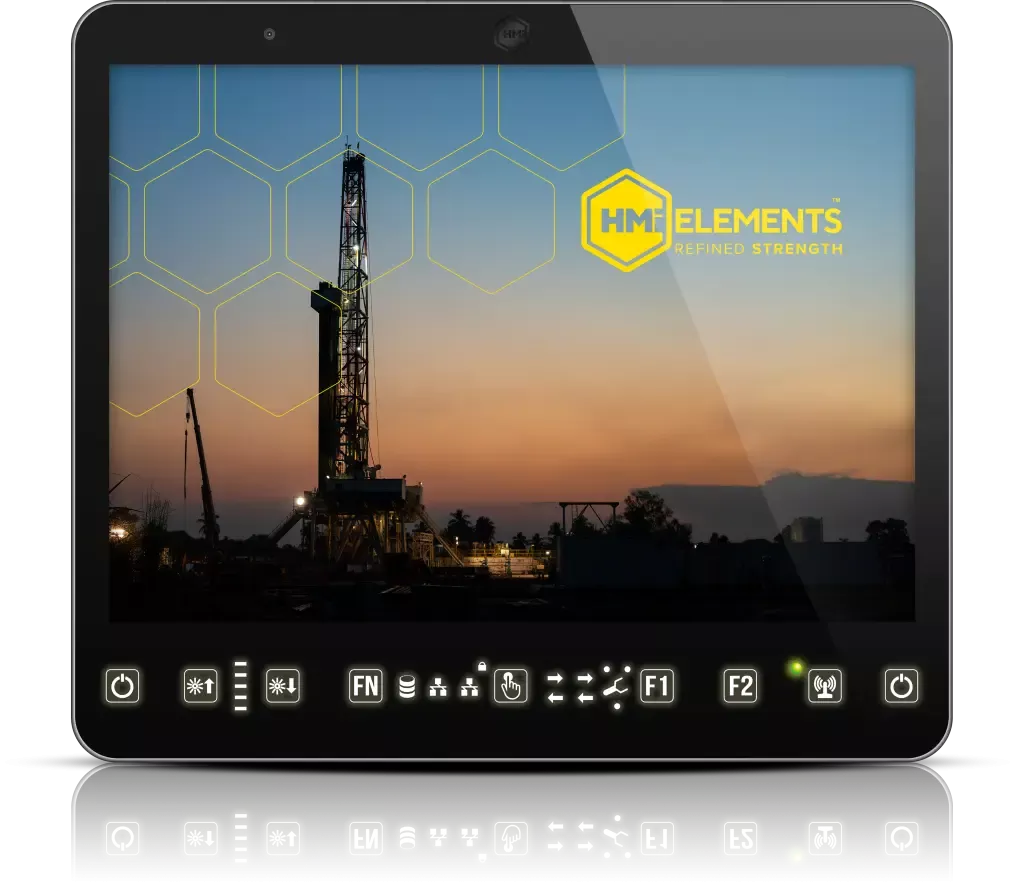

The latest addition to HMI Elements’s range of hazardous area HMIs is a slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Zone 1 areas with Ethernet and WiFi as standard and a choice of operating voltages.
Features:
- Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
- 19" 1000 nit display
- Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard

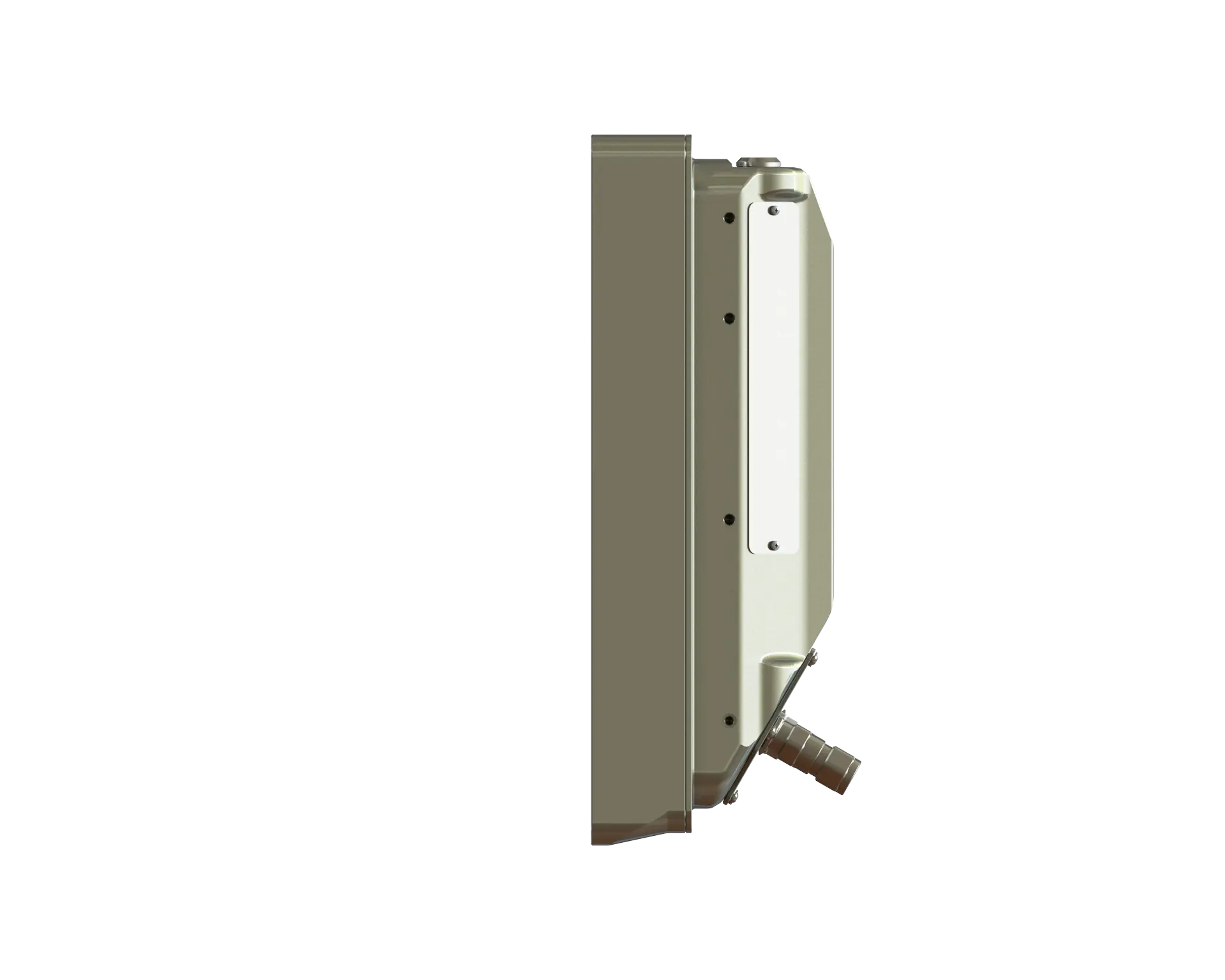

- Thin: 5" profile. Lightweight: 25.2kg / 55.55lbs (excluding connectors, cables and accessories)
- VESA, yoke and panel mount options
- Choice of operating voltages
- Remote telemetry
- Built-in diagnostics
- Clean screen mode
- Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
- Ingress protected to IP66/NEMA 4X
- Shock in accordance with BS EN60068-2-27:2009
- Vibration in accordance with BS EN60068-2-6:2008
- Windows 10 Enterprise LTSB, Windows 10 Enterprise LTSC, Windows 7 Professional Operating System
- Designed for field maintainability
| 1301-Z1 : | |
|---|---|
| PRODUCT TYPE | PC Workstation |
| PRODUCT SUPPLY | Auto ranging, 100-240VAC, 50-60 Hz, 1.3A |
| TYPICAL EX CODE | ATEX: II2 GD Ex eb mb op is [Ib] IIC T4 Gb Ex tb IIC T90°C IECEx: Ex eb mb op is [Ib] IIC T4 Gb Ex tb IIC T90°C USA: Class 1, Zone 1, AEx eb db mb op is [ib] IIC T4 Gb Zone 21, AEx tb IIC T90°C Db Canada: Ex db ib mb IIC T4 Gb Ex tb IIC T90°C Db |
| DISPLAY SIZE | 19" aspect ratio 5:4 |
| DISPLAY TYPE | Sunlight readable, High Bright 1000 Nit Antiglare Finish |
| RESOLUTION | SXGA; 1280 x 1024, wide viewing angle, 24 bit colour |
| PROCESSOR OPTIONS | Intel Core i7 6th Gen Skylake 6600U OR Intel Core i7 7th Gen Kabylake 7600U |
| MEMORY OPTIONS | 8GB (2 x 4), 16GB(2 x 8), 32GB(2 x 16) DDR4 - 2133Mhz |
| OPERATING SYSTEM | Windows 10 Enterprise LTSB Windows 10 Enterprise LTSC Windows 7 Professional 64 bit (6600U only) |
| INGRESS PROTECTION | IP66 / NEMA 4X |
| OPERATING TEMPERATURE | -40°C to +60°C (-40°F to +140°F) -40°C to +55°C ( -40°F to +131°F) with Media converter fitted |
| STORAGE TEMP | -40°C to +85°C (-40°F to +185°F) |
| WEIGHT | 25.2kg (55.55lbs) excluding connectors, cables and accessories |

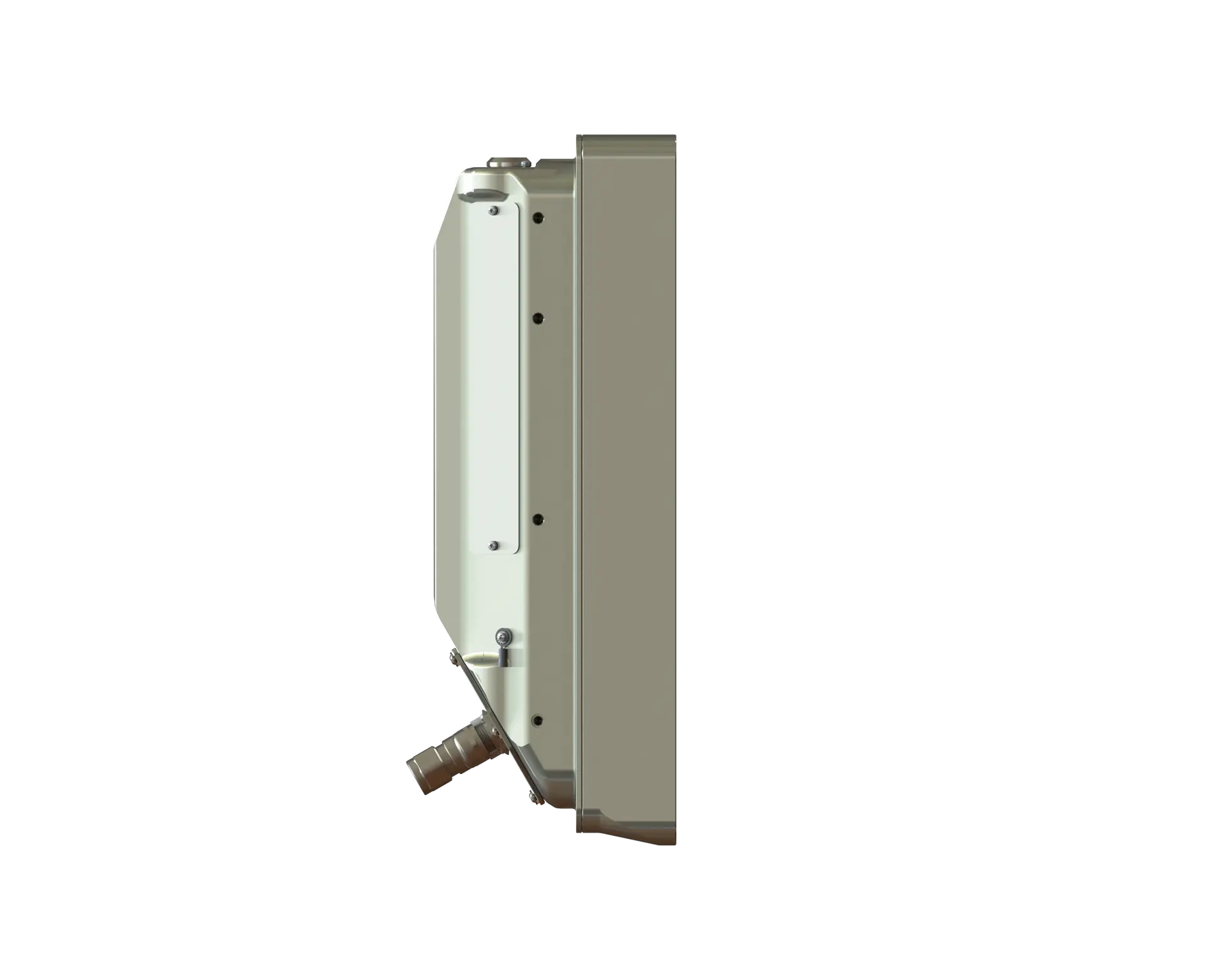

| SIZE | Metric: 476mm x 427mm x 95mm ( W x H x D) Imperial : 18.75" x 16.81" x 3.74" (W x H x D) |

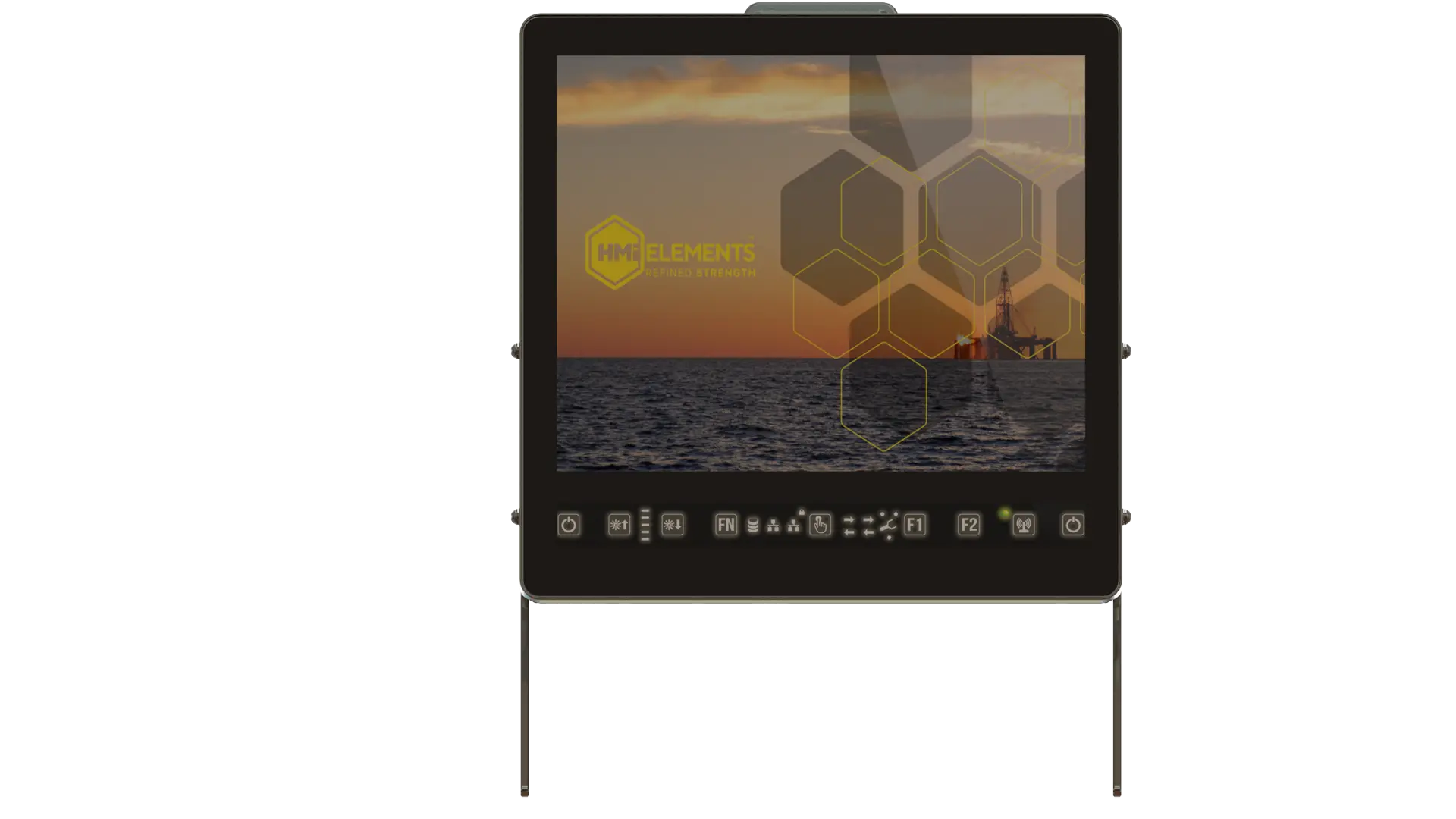

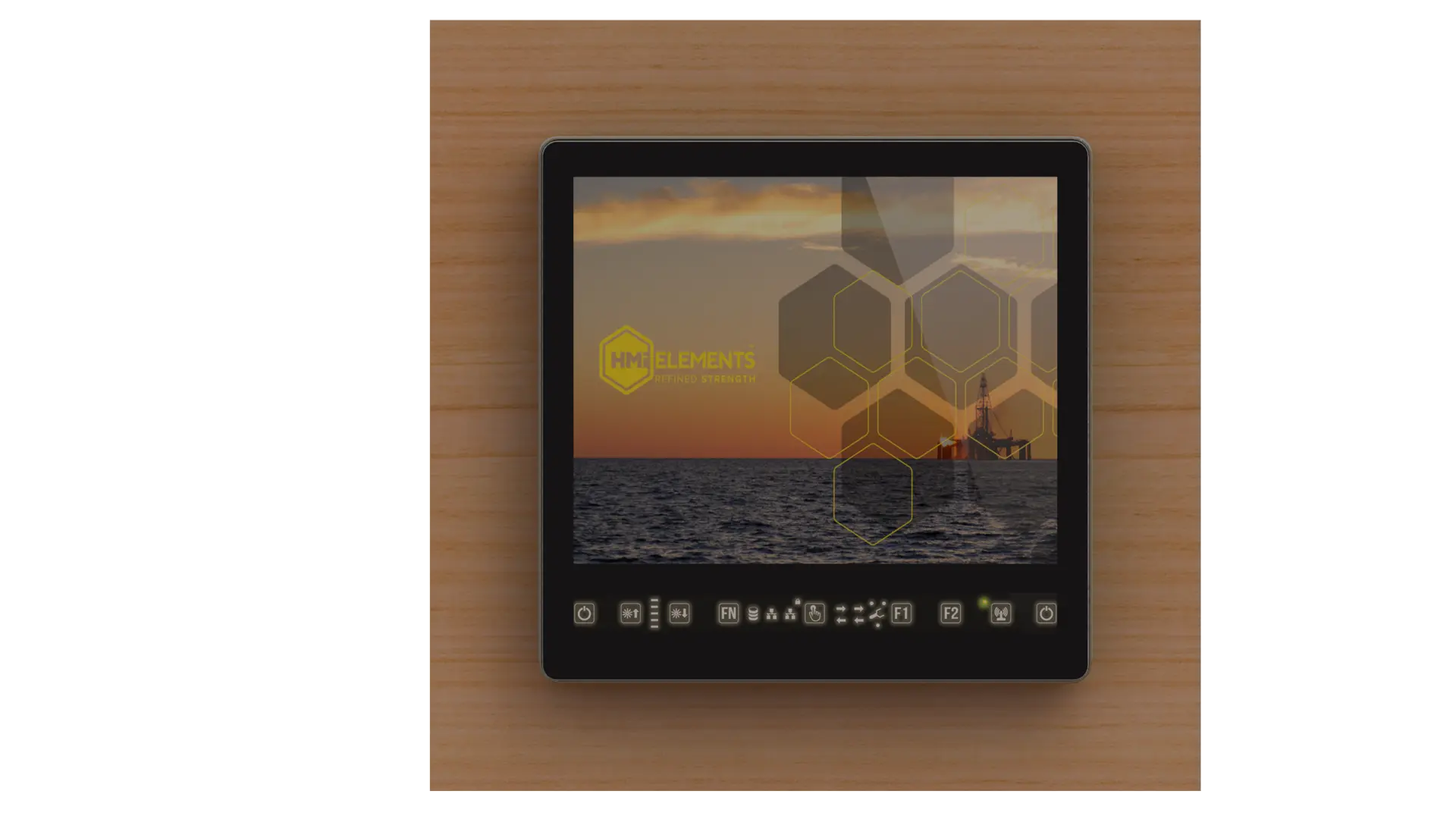

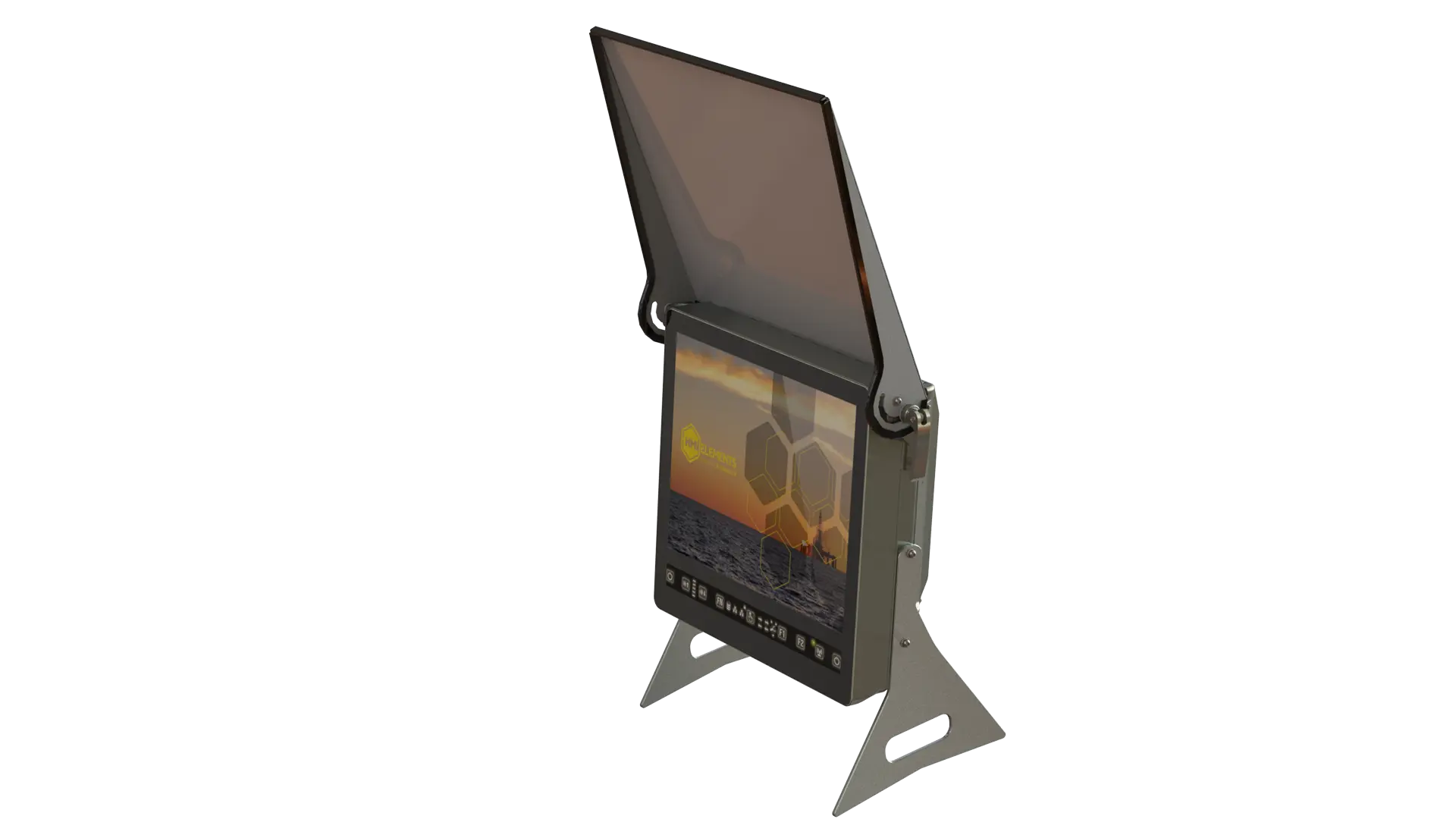

| MOUNTING OPTIONS | VESA, Yoke, Desk Stand, Panel |

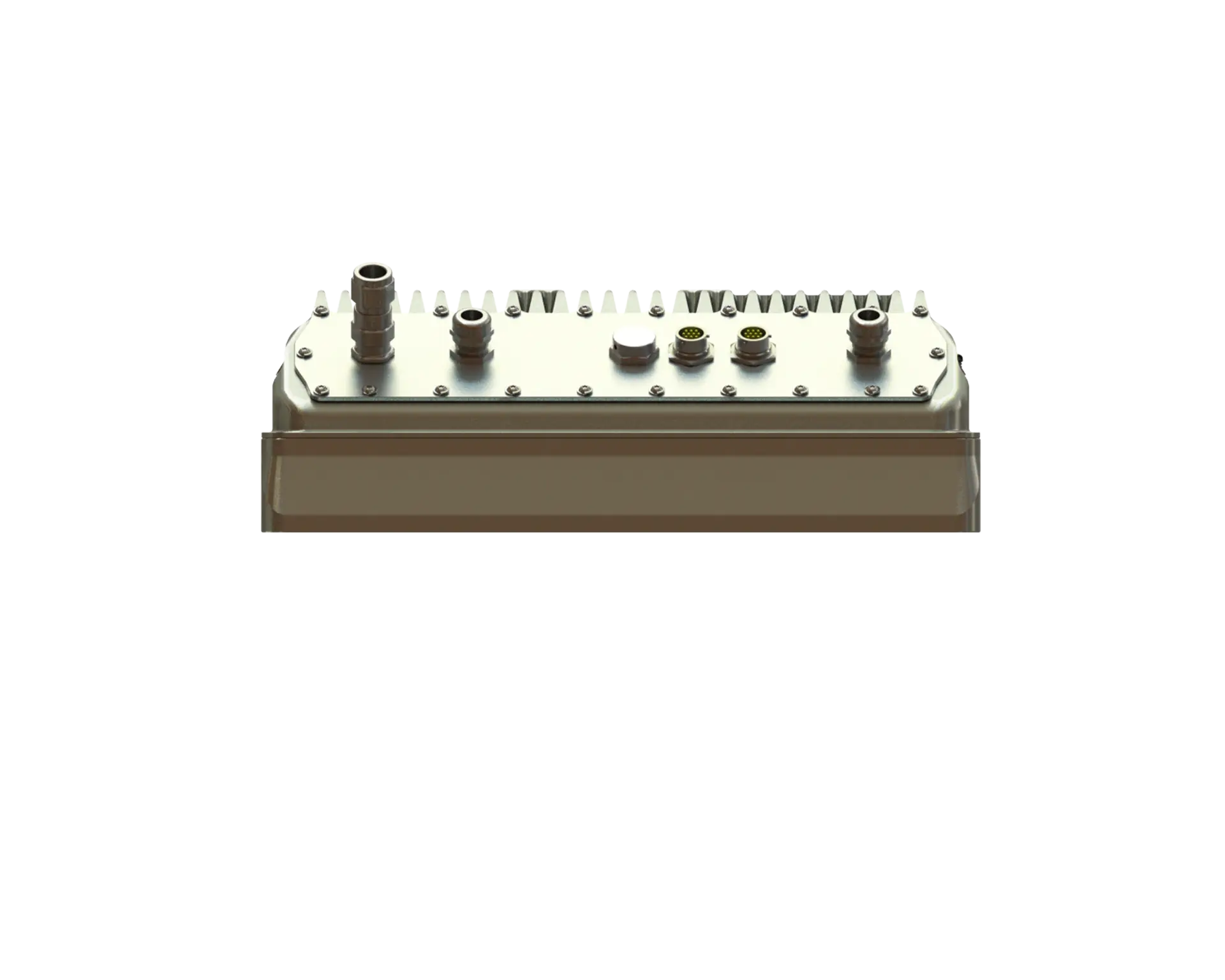

| INTERFACES | Standard: USB, Ethernet Optional: RS232, RS485, IS Horn, Wi-Fi, Fibre |
| COMMUNICATION OPTIONS | Wireless (IS): Wi-Fi IEEE 802.11 a/b/g/n/ac 2.4G hz & 5GHz Xbee 802.15.4 Microhard IPn920 - 900Mhz Bluetooth Fibre (OP IS): 1310nm, 850nm Remote interogation and on board Diagnostics |
This is a typical Specification; if you have other requirements please Contact Us
