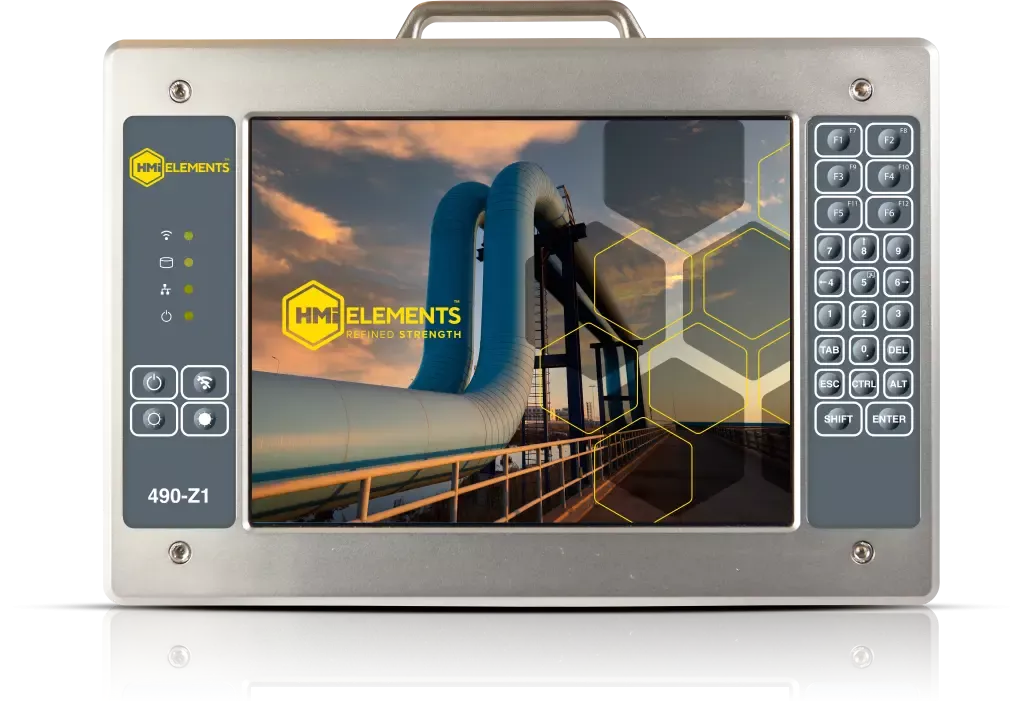

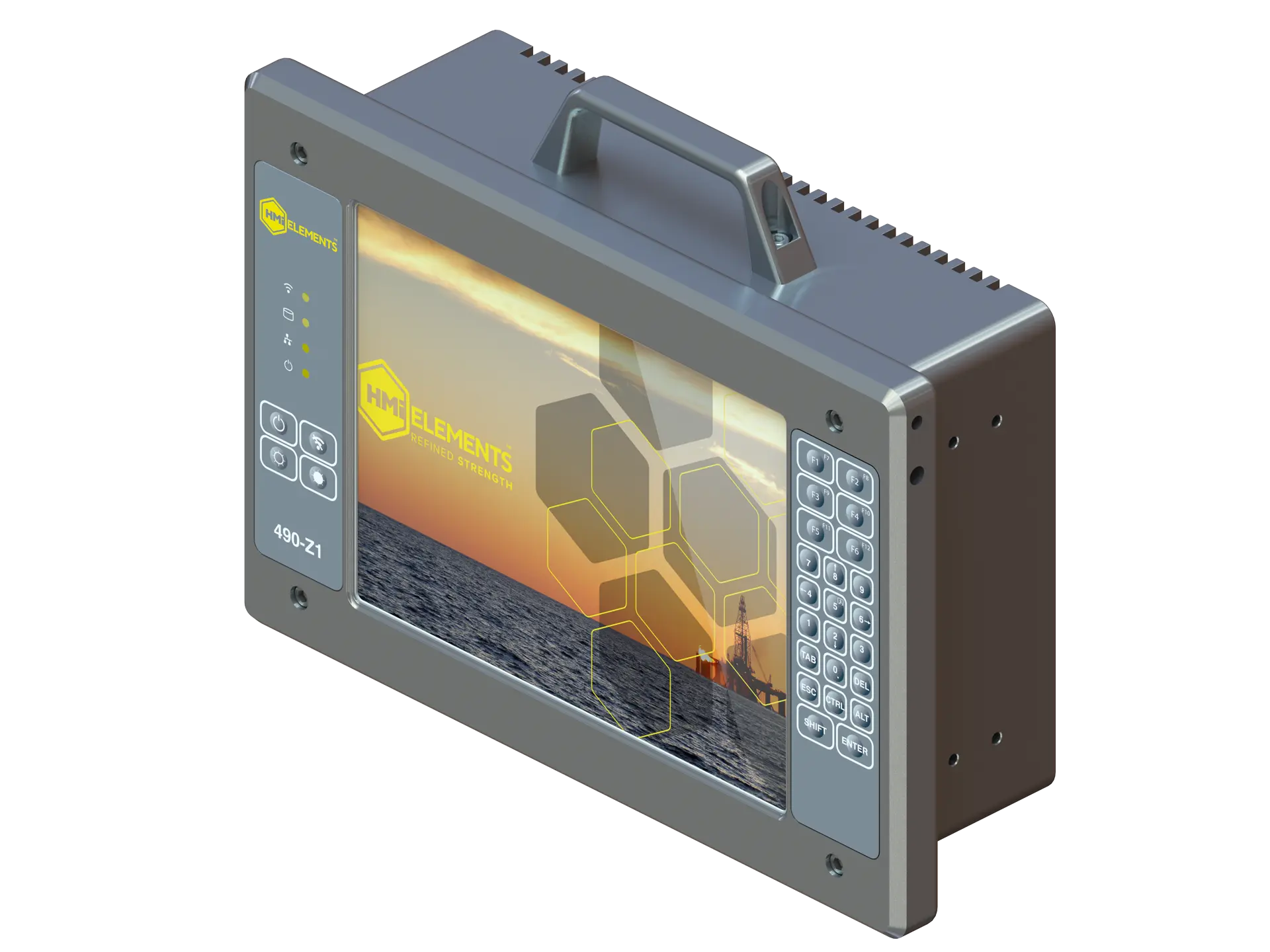

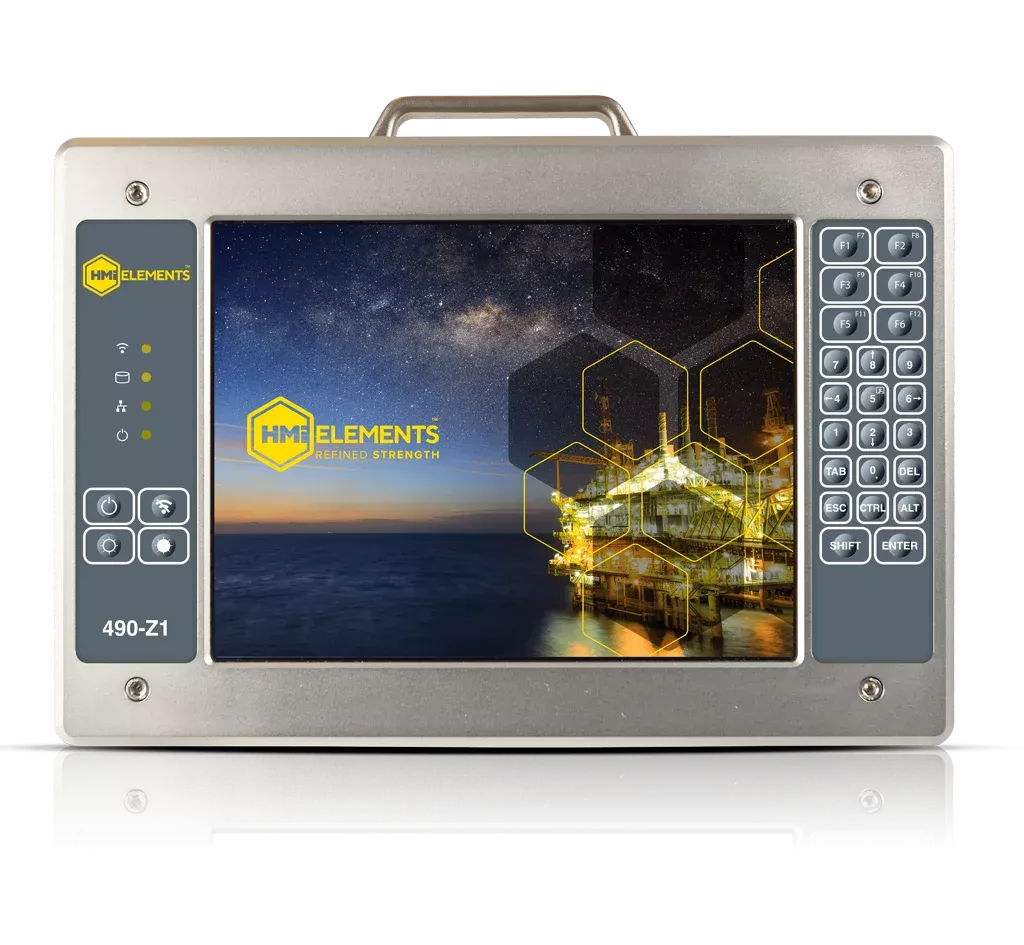

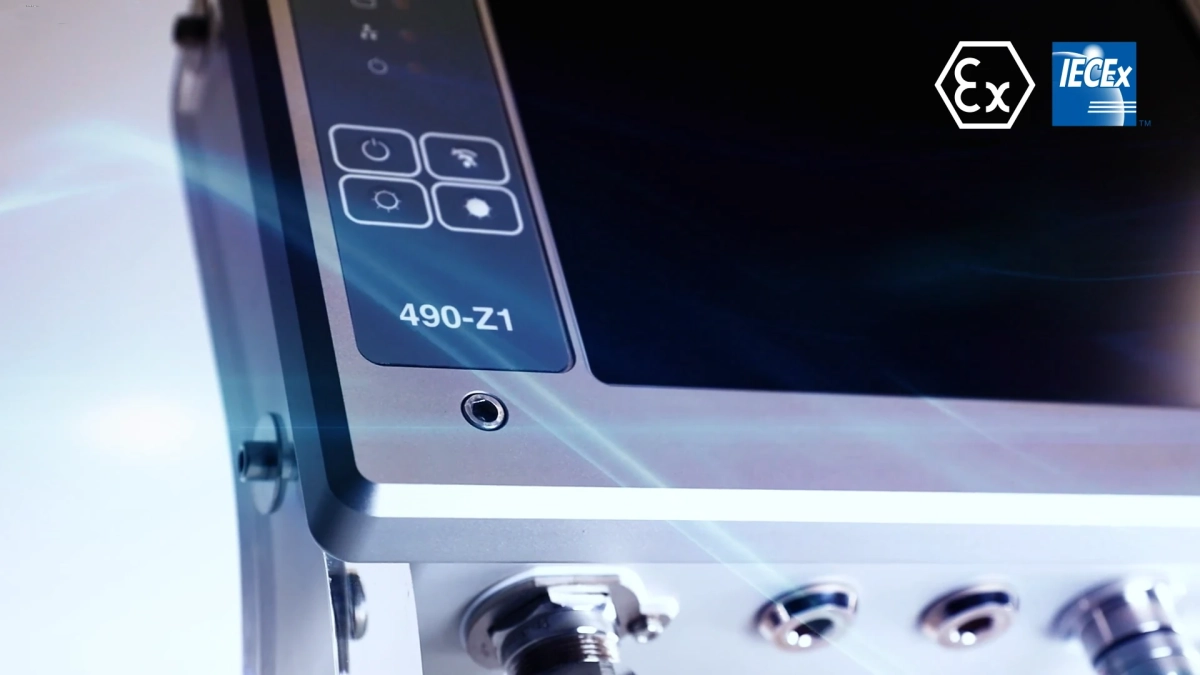

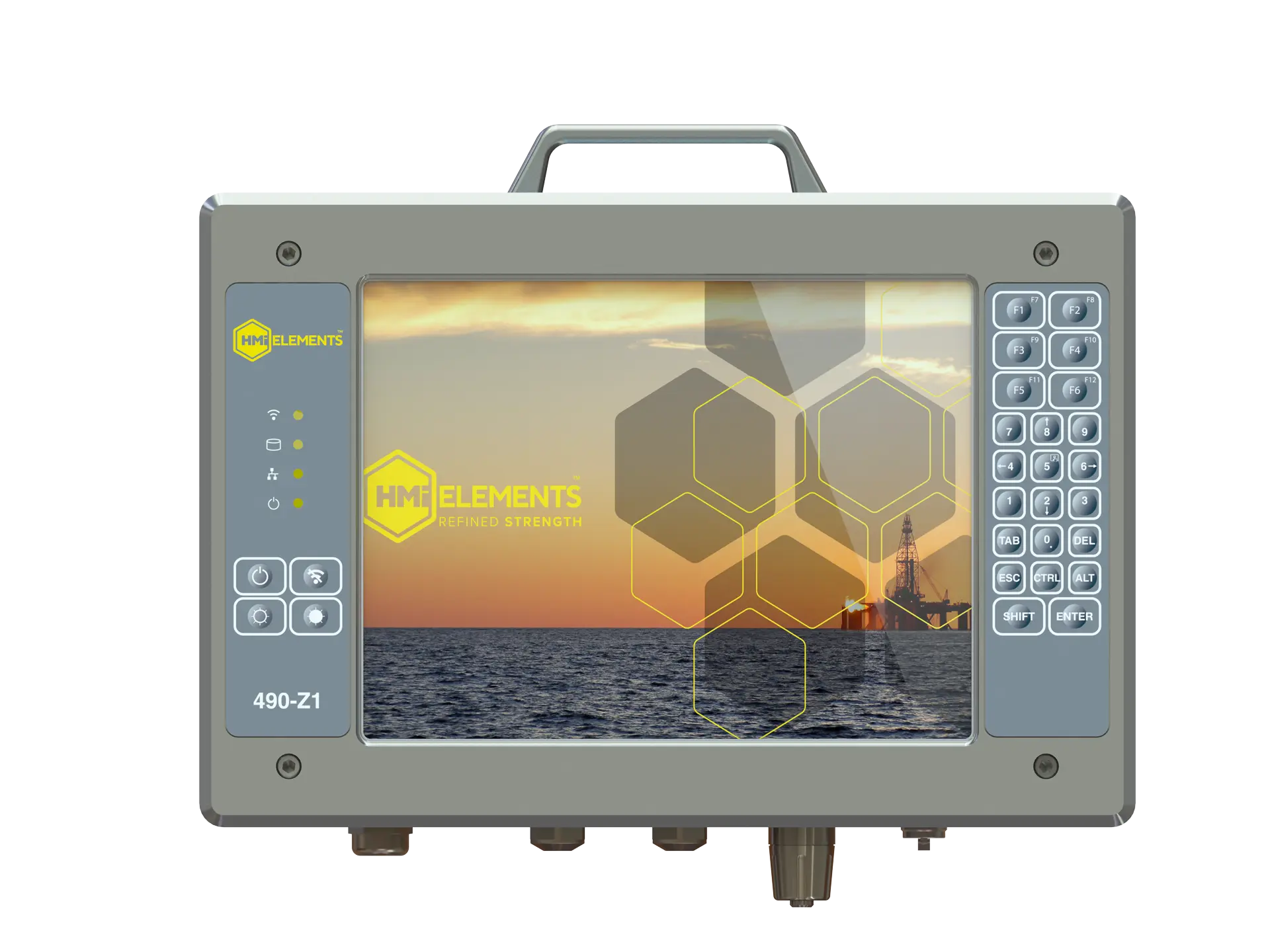

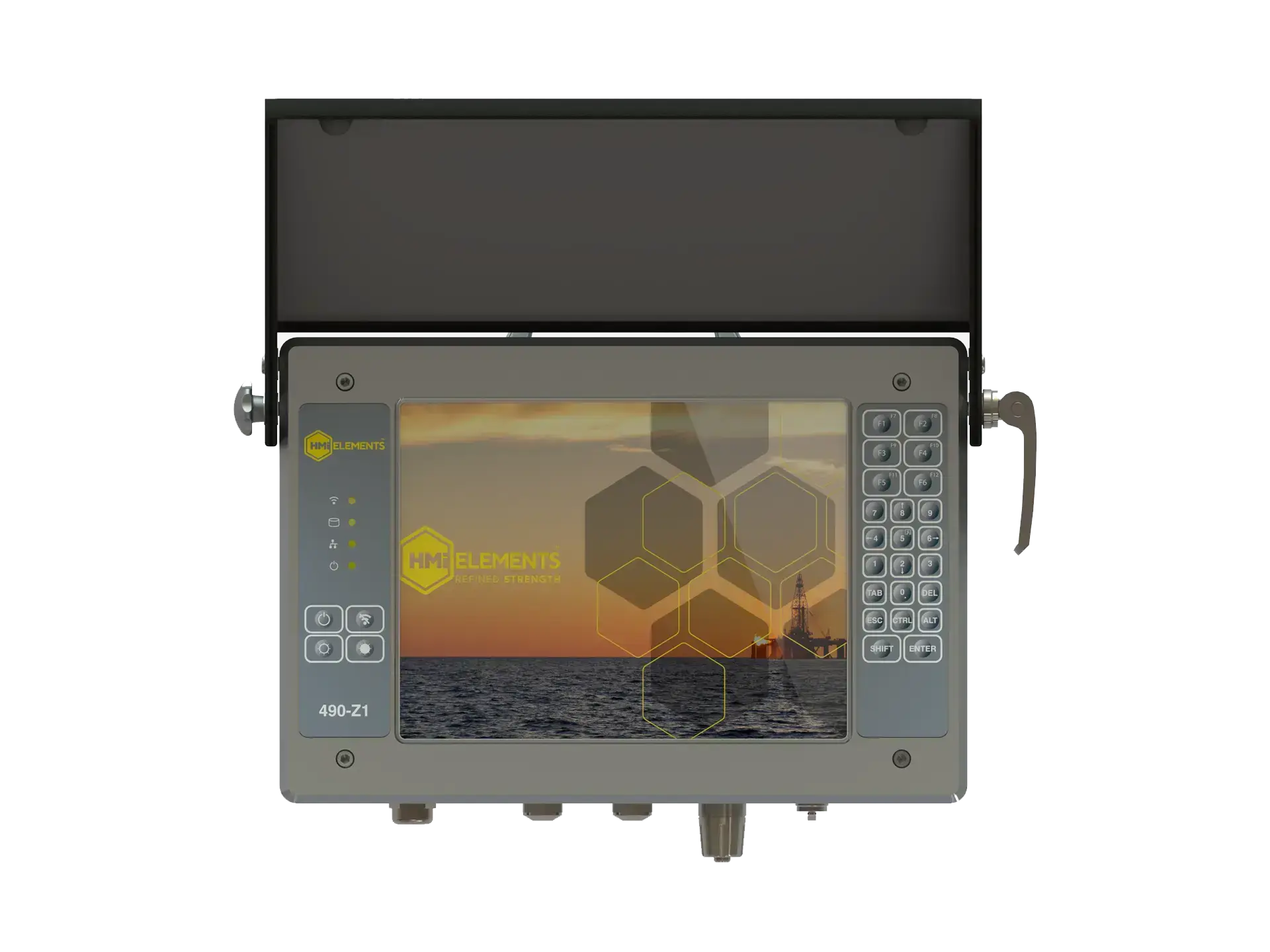

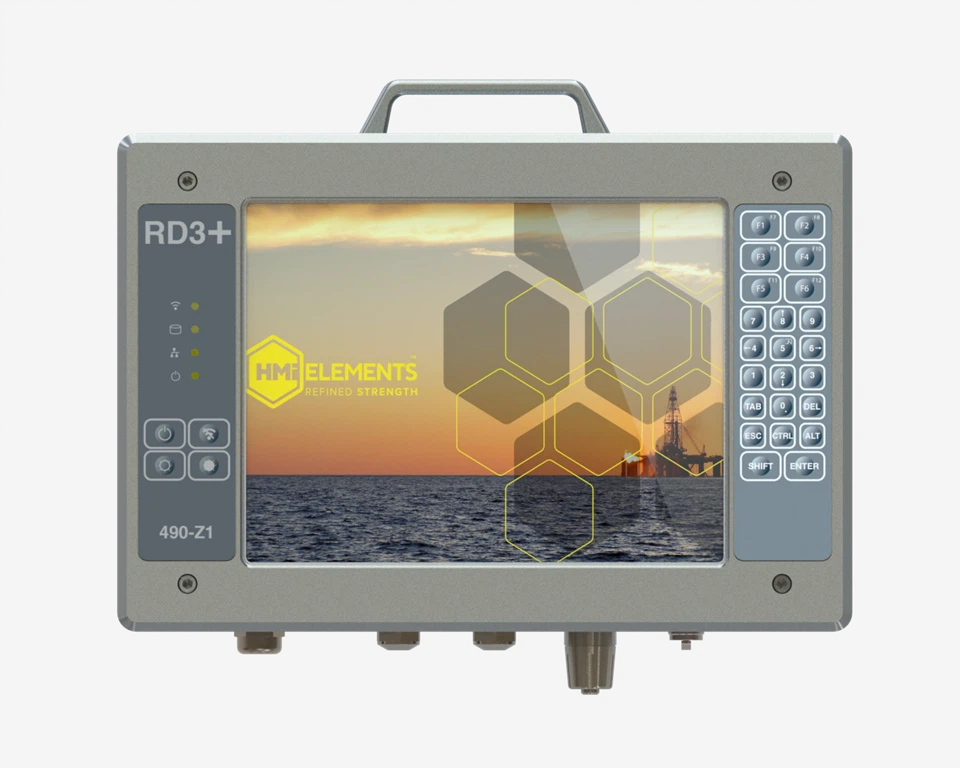

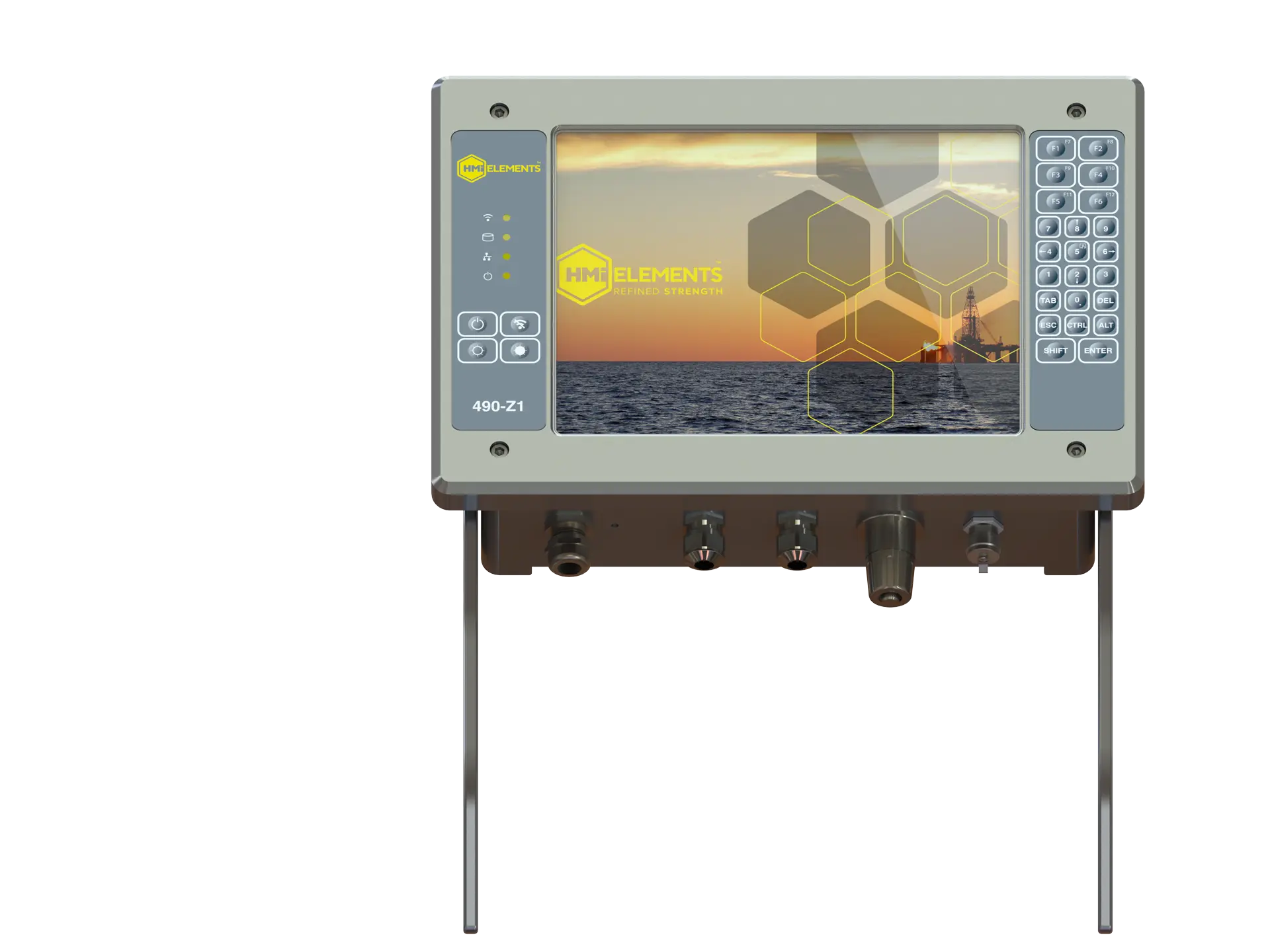

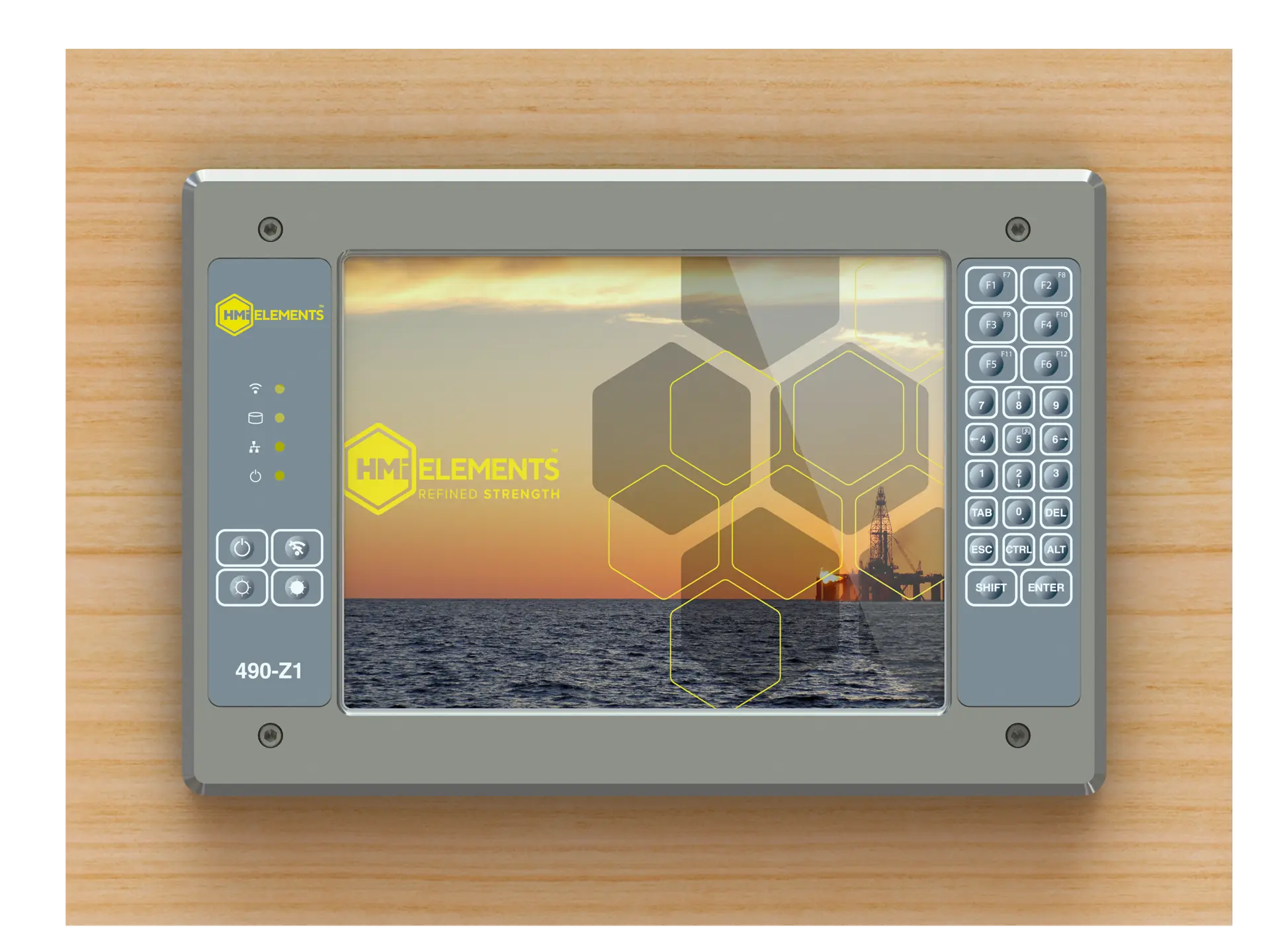

490-Z1

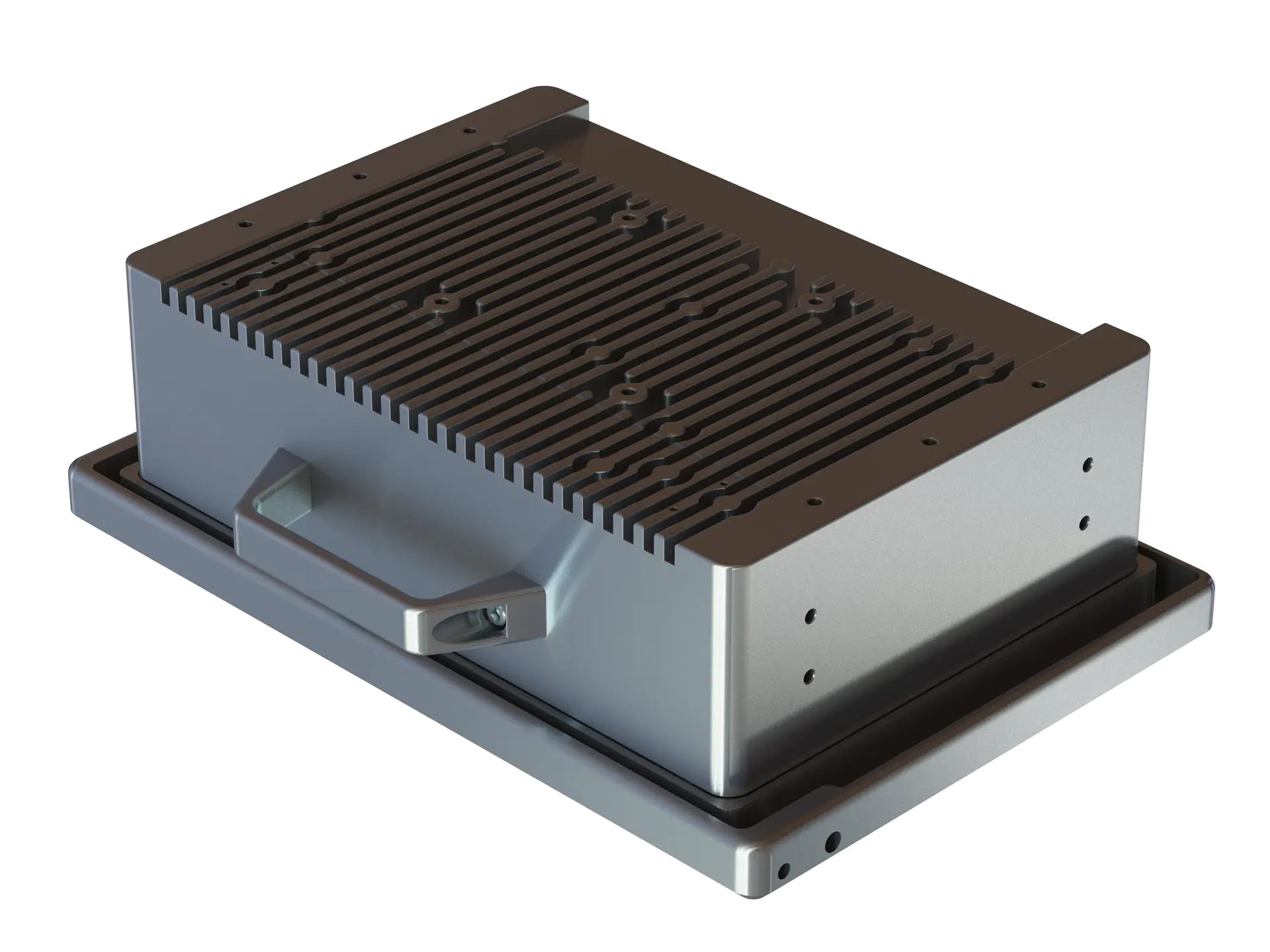

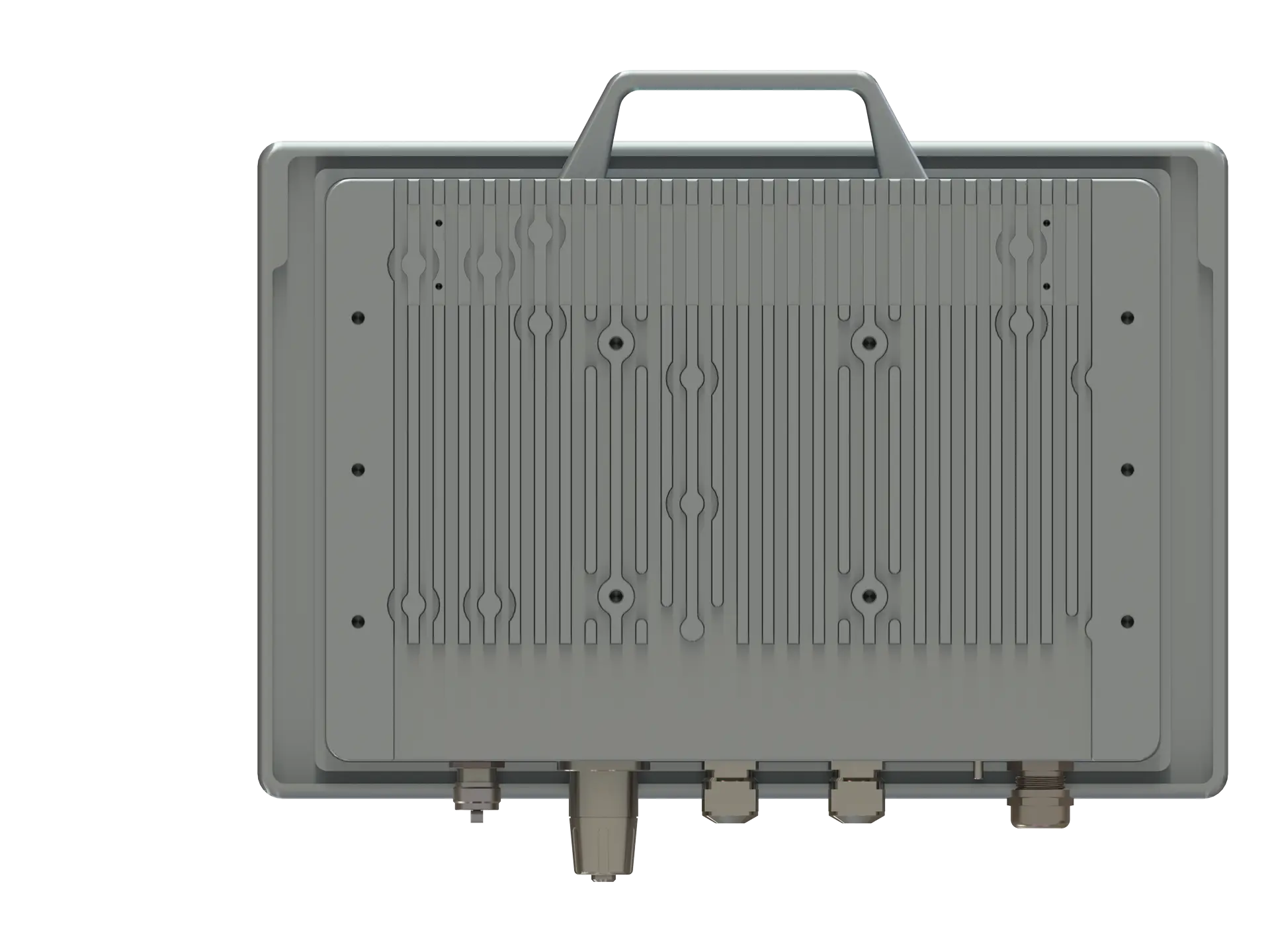

Precision engineered enclosure provides durable, compact, lightweight and modular HMI suitable for FDA driller display applications. Field-tested and proven to perform in the harshest environments.
HMI only requires one man to lift and certified to ATEX, UKEX, IECEx, AEx, CSA.
- Modular construction for field maintenance
- Quad Core Intel Celeron N2930 1.83GHz processor
- 8GB DDR3 SDRAM
- High brightness 600 nit, 12.1" LCD panel with LED backlight display
- 1024 x 768 resolution
- Projected Capacitive Touchscreen (PCT) with four or more touch points
- 80GB, 160GB, 320GB mSATA Solid State Drive
- 10/100/1000Gb Base-T Ethernet, Wi-Fi & Bluetooth
- Fibre-optic port, via 850nM or 1310nM
CRISP & BRIGHT DISPLAY
A high-bright 1000 Nits display, viewable in direct sunlight.
FULLY CERTIFIED
Certified to ATEX, IECEx,
NEC505 (AEx)
CEC CSA 22.2 Section 18
LIGHT & SLIM
Weighing in at just 25.5kg (56.2lbs), the 1301-Z1 is 145mm (5.7”) thin and is able to be carried by just 1 person.
MODULAR
For Field Maintenance
SUPER-FAST PROCESSOR
The intel core i7 processor works 100% from -40°C to +60°C
