Lightweight Zone 2 PC approved to IECEx, ATEX, AEx and CSA Standards

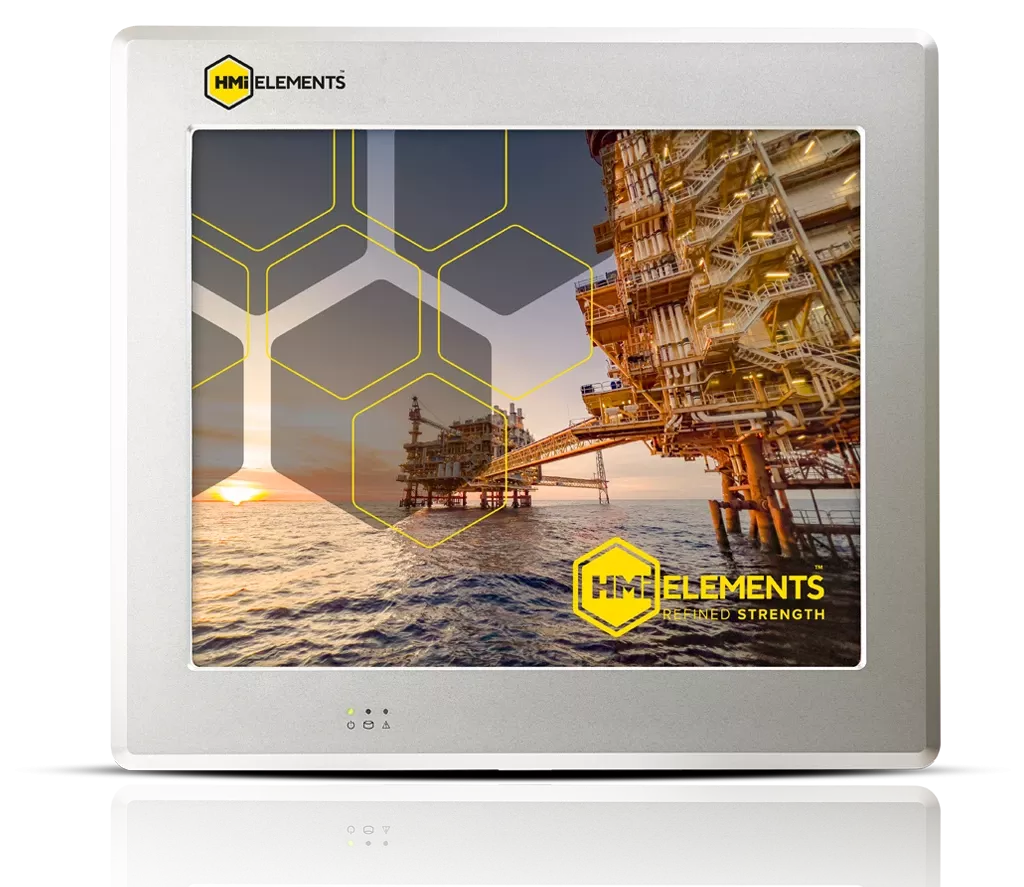

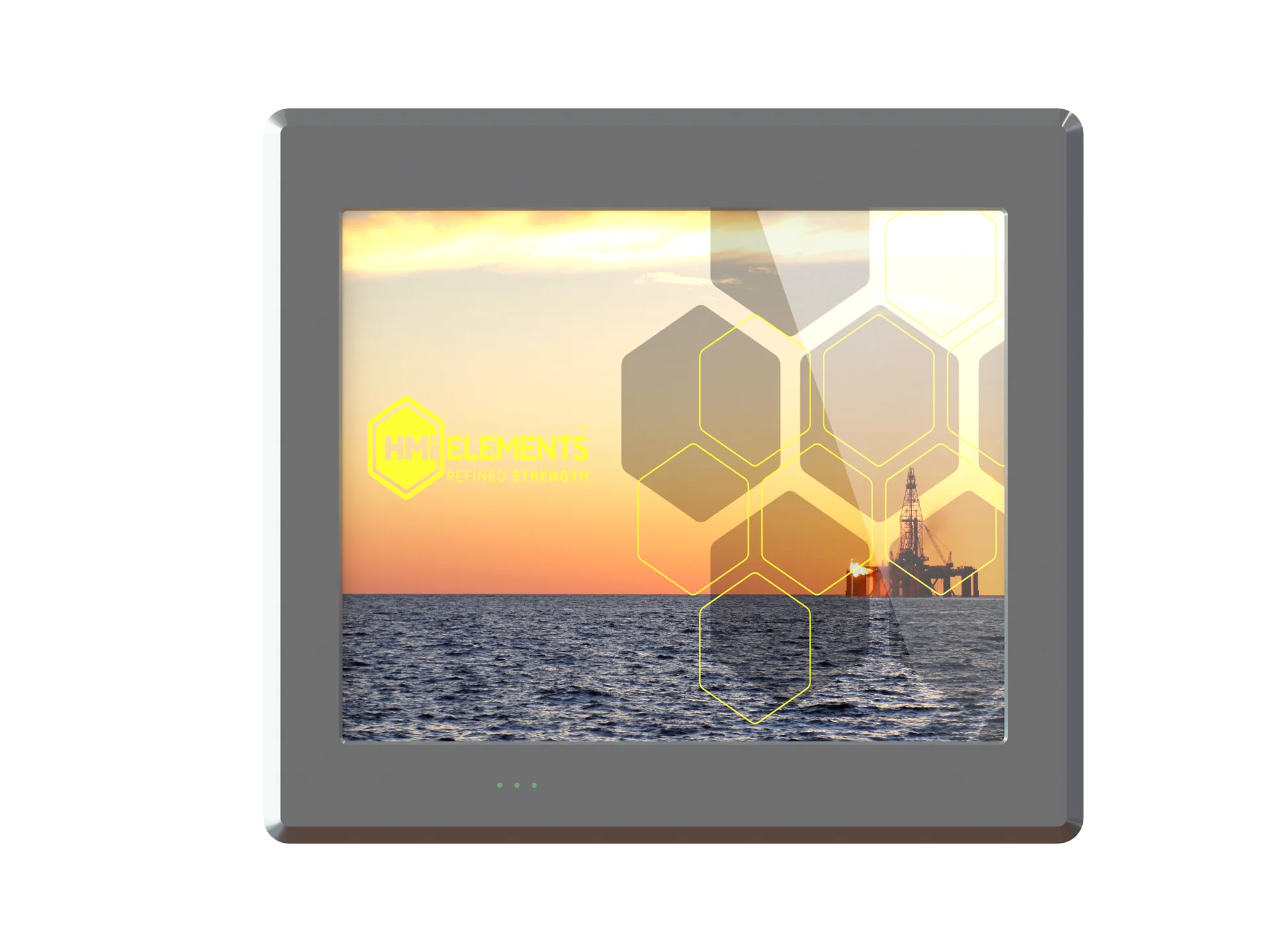

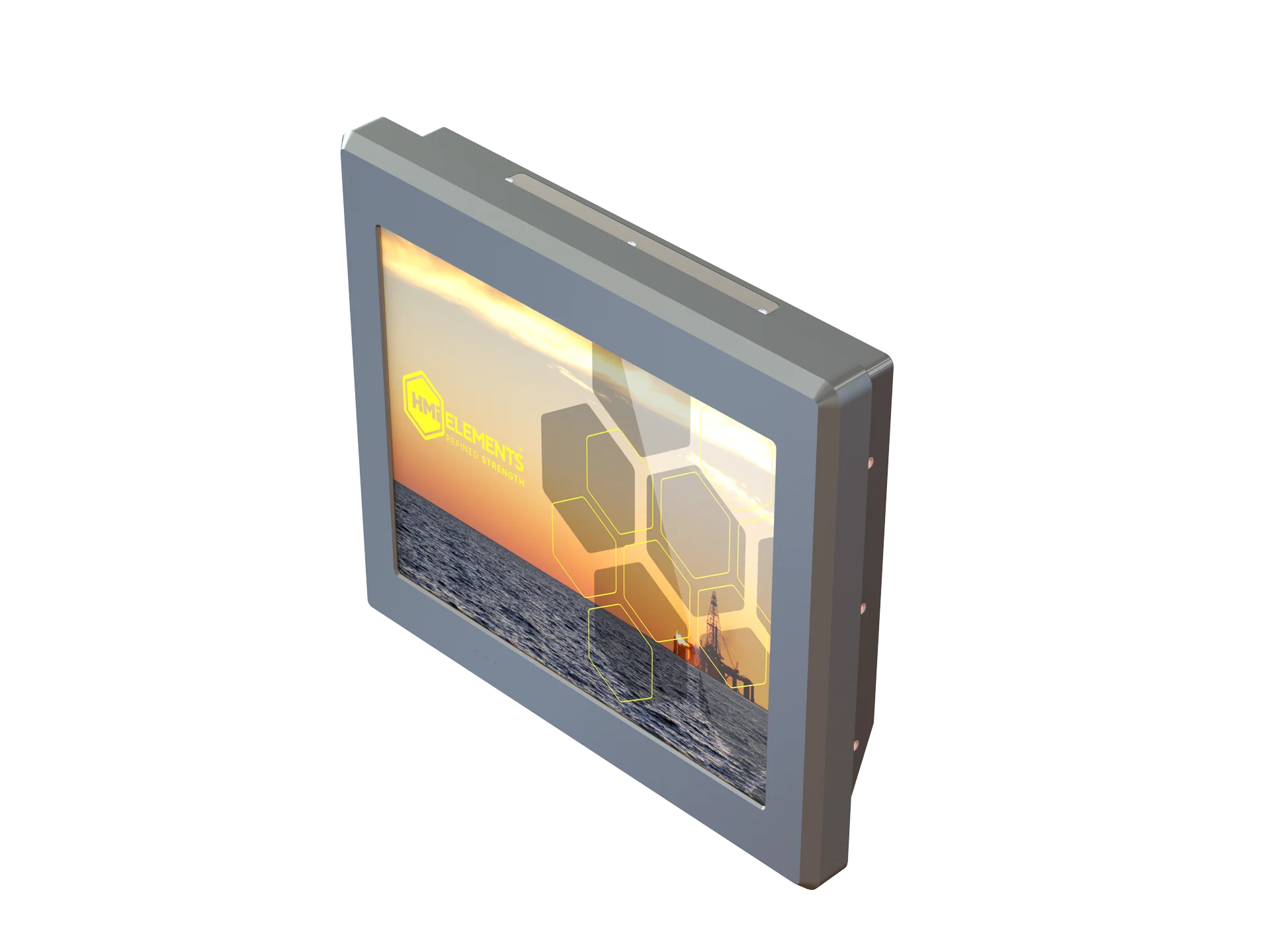

A slim and lightweight PC, with a super high-bright 19”, 1000 nit multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class I Div 2, Class I Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.
Features:
- Glove-friendly Projective Capacitive Touchscreen (PCT) with multi-touch
- 19" 1000 nit display
- Wide -40°C to +60°C (-40°F to +140°F) operating temperature range as standard

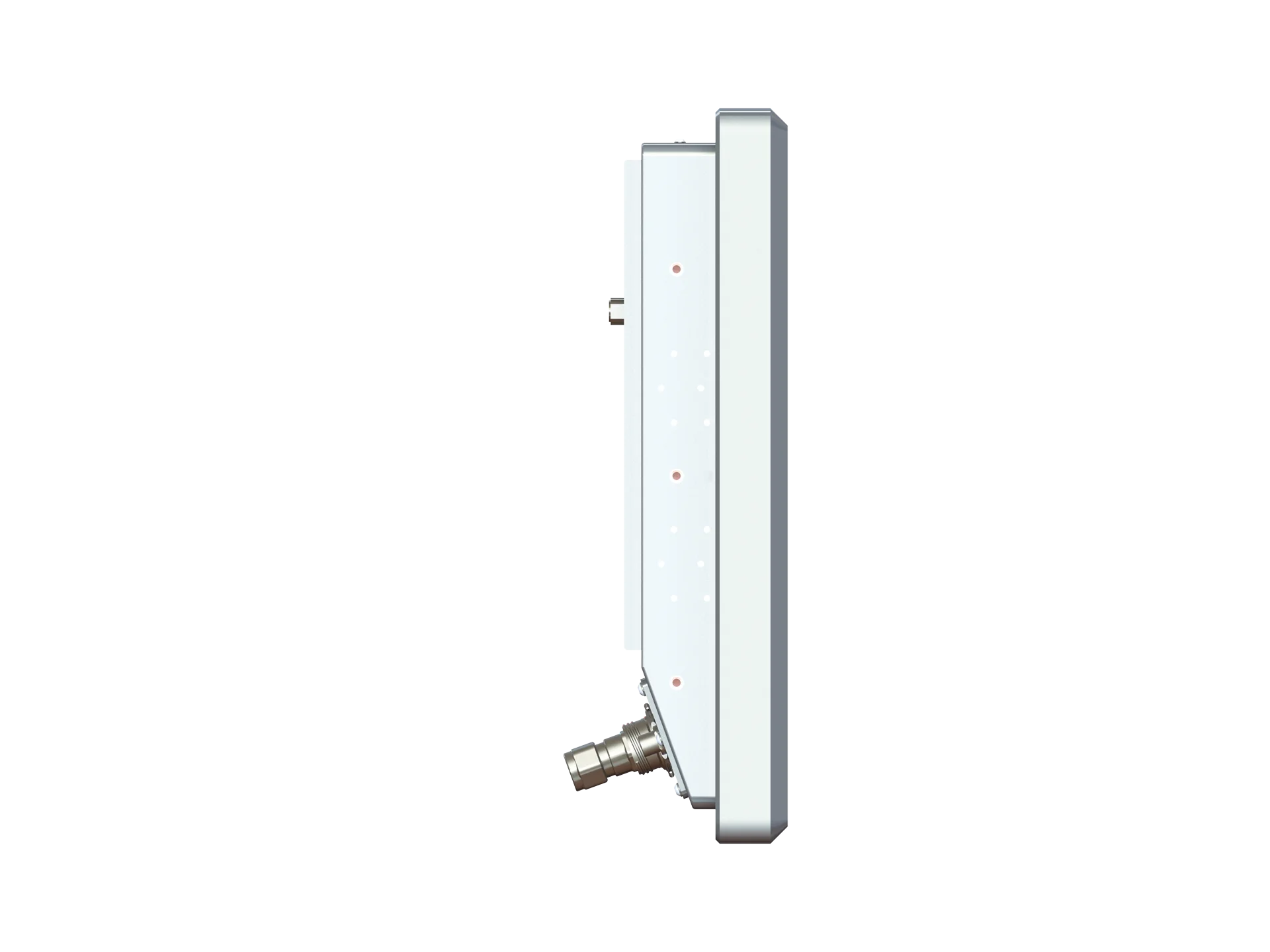

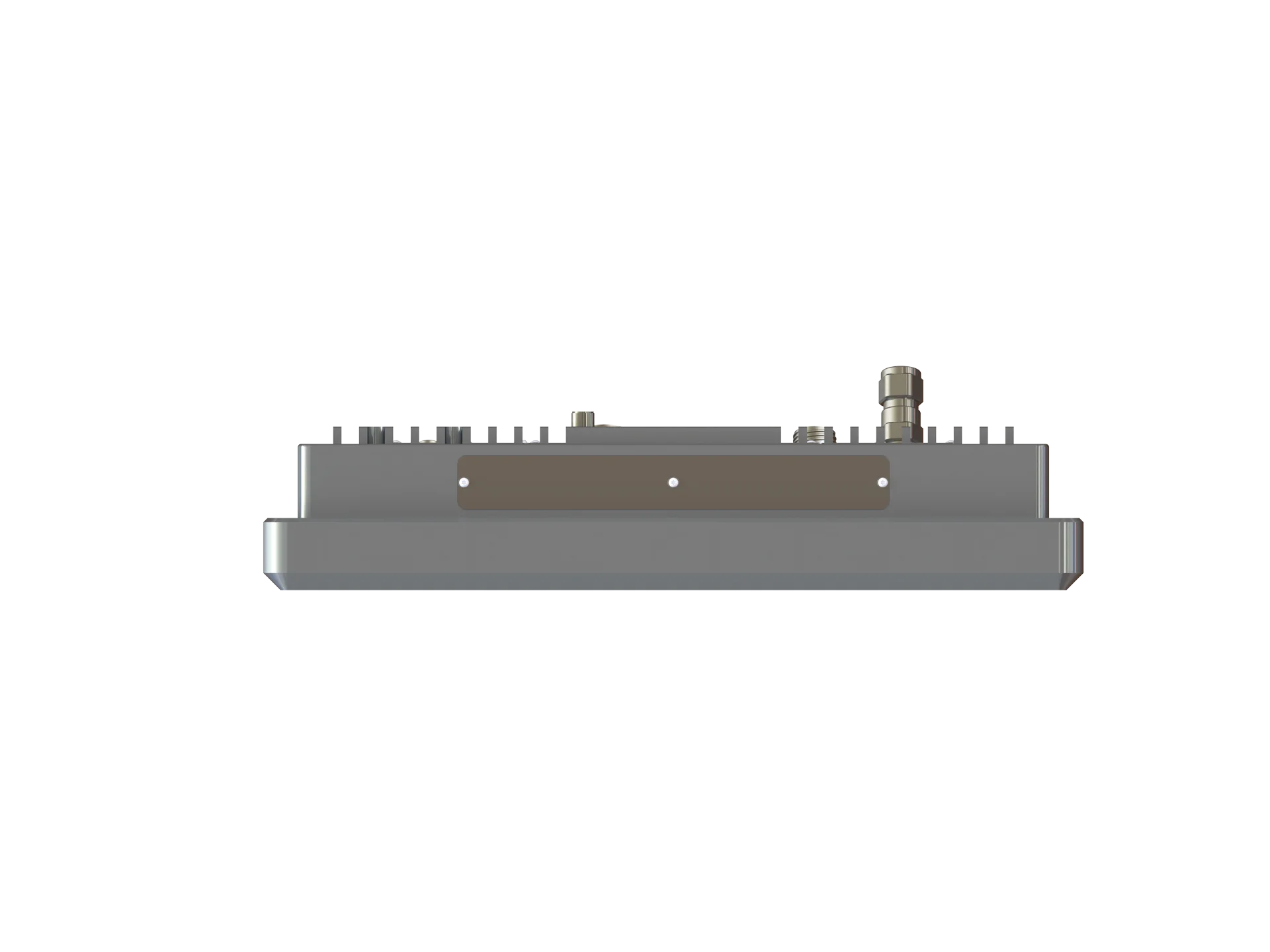

- Thin: 3.5" profile. Lightweight: 26.9lbs

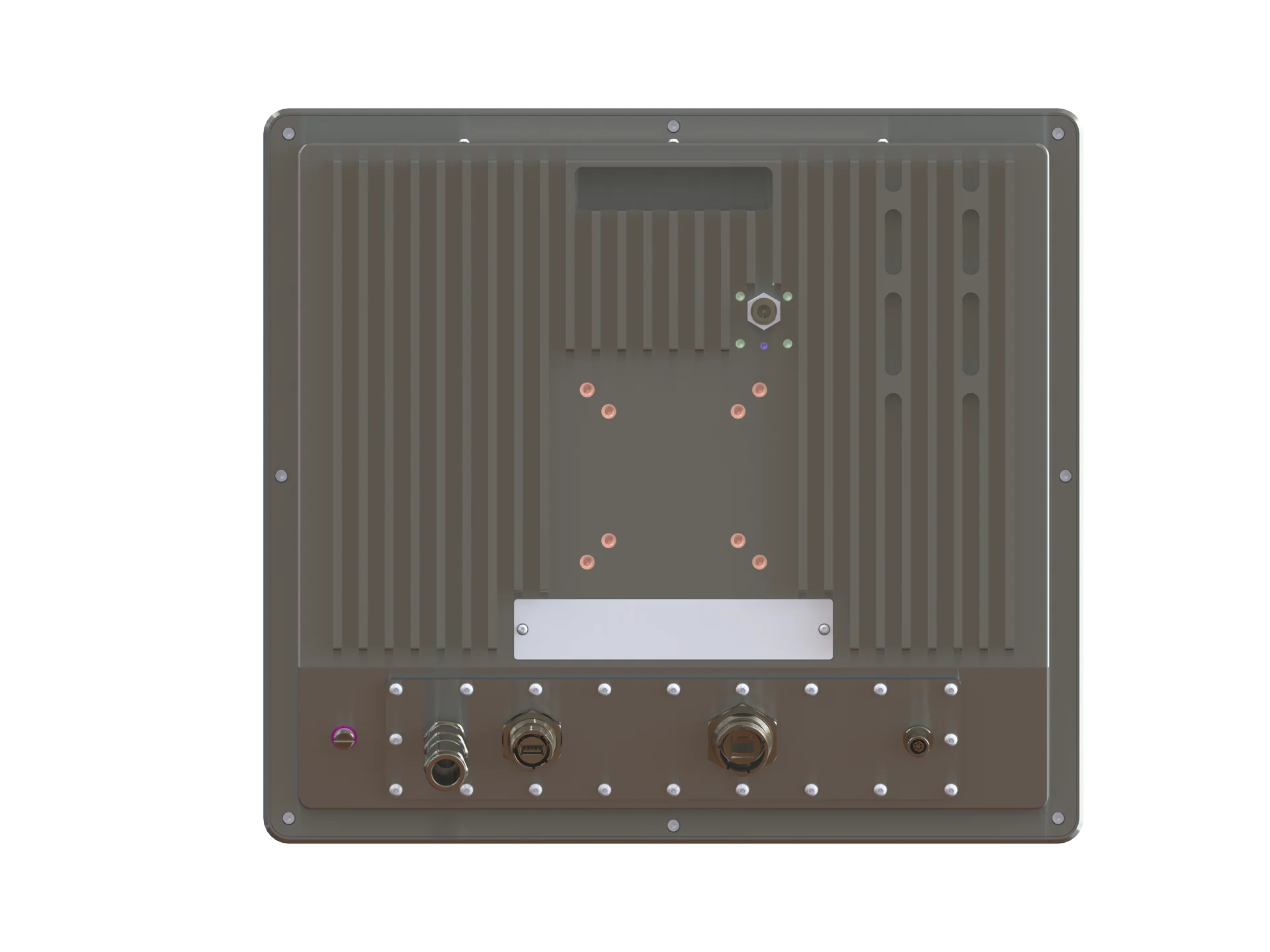

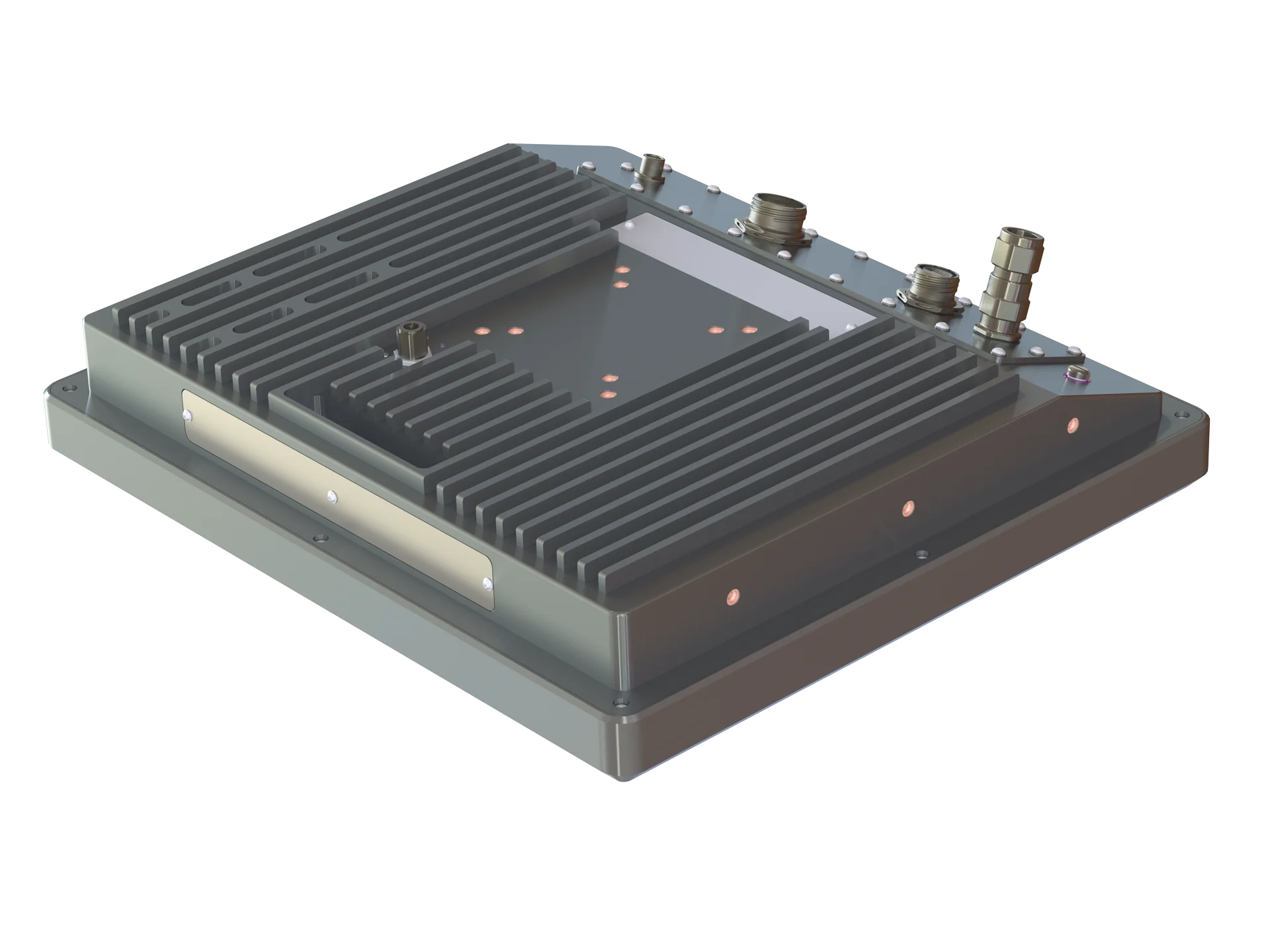

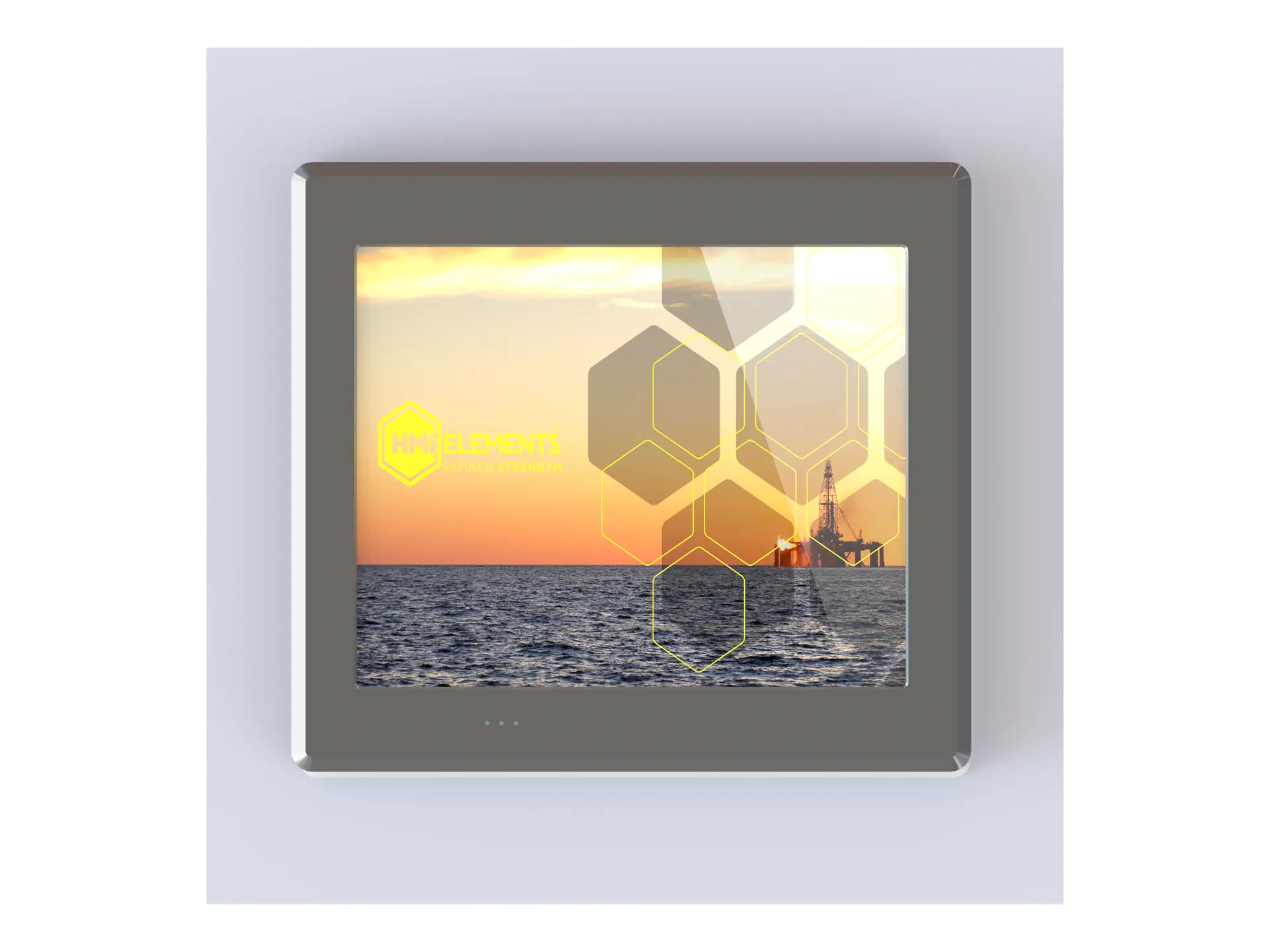

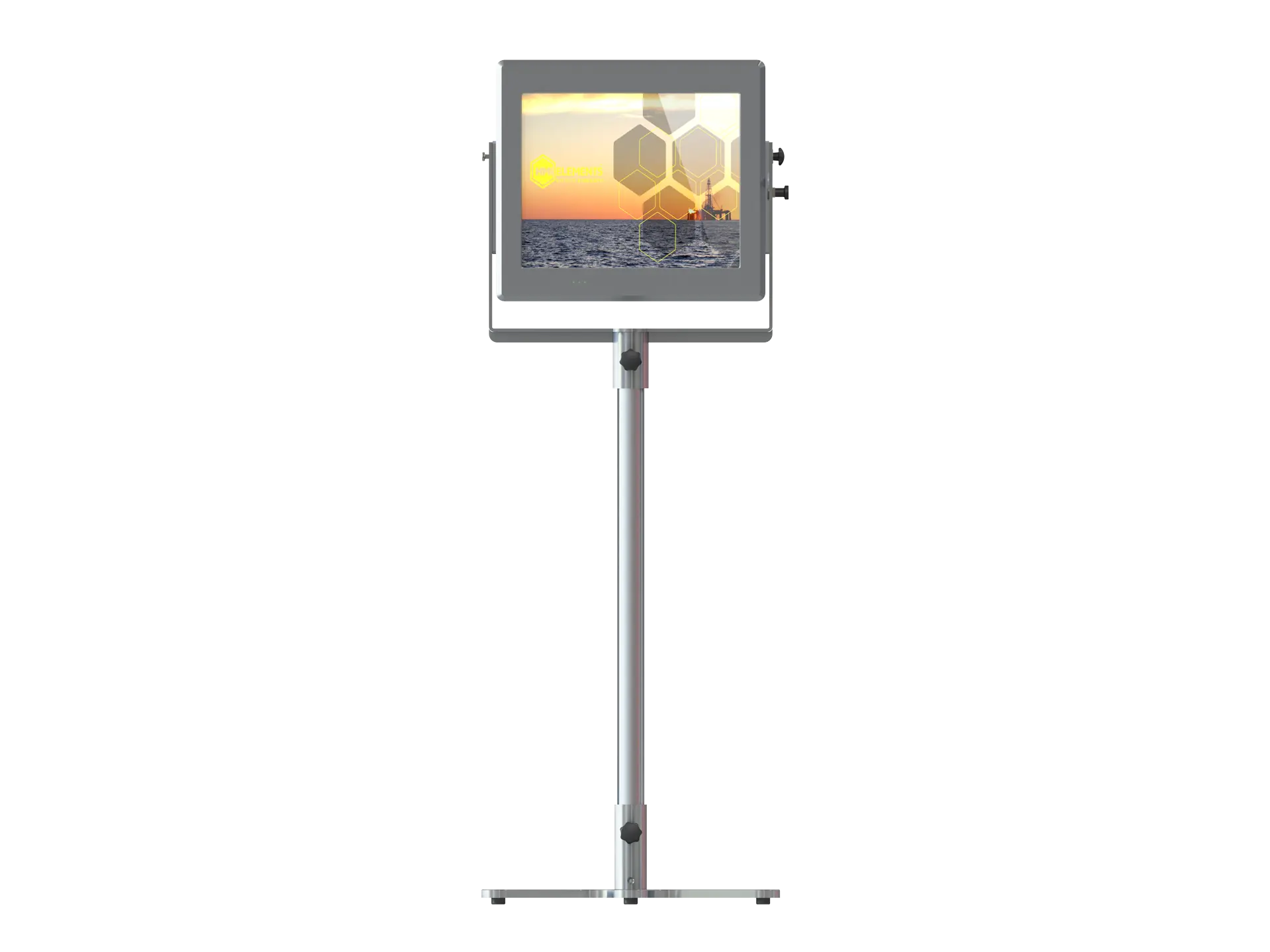

- VESA, yoke and panel mount options
- Choice of operating voltages AC, auto ranging between 100-240Vac (50 to 60 Hz) and DC, nominal +24V (18 to 35V range)
- Remote telemetry
- Built-in diagnostics
- Clean screen mode
- Ethernet 10/100/1000 Mbit/s and Wi-Fi as standard
- Ingress protected to IP66/NEMA 4X
- Shock in accordance with BS EN60068-2-27:2009
- Vibration in accordance with BS EN60068-2-6:2008
- Windows 10 Enterprise LTSB, Windows 7 Professional Embedded Operating System
- Designed for field maintainability
| 1302-Z2 : | ATOM | i7 |
|---|---|---|
| Product Type | PC Workstation | |
| Model No | 1302-Z2 | |
| typical ex code | ATEX/IECExEx nA [ic] IIC T4 Gc (Gc) Ex tc IIIC T135°C Dc CSA Class 1 Div 2, AEx Class 1 Zone 2 Zone 21 | |
| Display Size | 19" | |
| Display Type | Sunlight Viewable Glove-Friendly 1000 nit Capacitive LCD Touchscreen | |
| Resolution | SXGA; 1280 x 1024, wide viewing angle, 24 bit colour | |
| Processor Options | Dual Core Atom 1.86GHz | Core i7-3517UE, 1.7GHz (TPM Compliant) |
| Operating System | Windows 10 Enterprise LTSB, Windows 7 Professional | |
| HDD/SSD Options | 64GB SSD (standard) + second 64GB SSD (optional) | 64GB SSD (standard) also available 128GB or 256GB SSD + second drive 64, 128, 256GB SSD (optional) |
| RAM | 4GB | 8GB + option to upgrade to 32GB |
| Comm Options | 2 Copper Ethernet port is triple speed (10/100/1000 Mbits/s), Fibre Optic Ethernet, Wi-Fi (802.11 b/g/n) | |
| Keyboard / Mouse / Touchscreen | Intrinsically Safe PS/2 Interface | |
| USB | 2 x USB ports | |
| Serial Communications | One RS232 and one RS422/RS485 | |
| Ingress Protection | IP66 / NEMA4 and NEMA 4X | |
| Operating Temperature | -40°C to +60°C | |
| Operating Voltage | AC, auto ranging between 100-240Vac (50 to 60 Hz) DC, nominal +24V (18 to 35V range) | |
| Storage Temp | -40°C to +85°C (-40°F to +185°F) | |
| Weight | 26.9Ibs / 12.2kg | |
| Max Dimensions | 18.74" x 16.81" x 3.54" / 476mm x 427mm x 90mm | |
| Mounting Options | VESA, Yoke, Panel | |
| Shock & Vibration | Shock: In accordance with BS EN60068-2-27:2009 Vibration: In accordance with BS. EN60068-2-6:2008 | |
This is a typical Specification; if you have other requirements please Contact Us
1302-Z2 Product Video
The latest addition to HMI Elements's range of hazardous area HMIs is a slim and lightweight Thin Client with a super high-bright 19" multi-touch glove-friendly touchscreen. As you would expect from HMI Elements it comes certified for use in Class 1 Div 2, Class 1 Zone 2 areas with Ethernet and WiFi as standard and a choice of operating voltages.
