| PRODUCT TYPE |
PC Workstation |
| MODEL NO |
1402-Z2 |
| TYPICAL EX CODE |
Zone 2 hazardous area for gas and dust.
ATEX, UKEX, IECEx, NEC 505 (AEx), CSA 22.1 Canadian Electrical Code (CEC) Section 18.
II3 G D, Ex ec ic IIC T4 Gc, Ex tc IIIC T135’C Dc |
| POWER SUPPLY |
AC universal 100-240ac |
| TOUCHSCREEN |
Projective Capacitive Technology (PCT) – Multi Touch, Glove friendly |
| DISPLAY SIZE |
15.6” Wide Screen |
| BRIGHTNESS |
1000nit or 400nit options |
| RESOLUTION |
FHD AAS; 1920 x 1080, wide viewing angle, 24bit (16.2M) colours. |
| PROCESSOR OPTIONS |
Intel 11th Gen Tiger Lake Core i7-1185GRE |
| OPERATING SYSTEM |
Windows 11 IoT Ent, Windows 10 IoT Enterprise LTSC |
| SIDE PANEL CONTROLS |
Screen brightness, Power on-off |
| DIAGNOSTICS |
Dual colour LED diagnostic indicator.
Power sequencing and heater control indicator |
| SSD OPTIONS |
Up-to 2x SATA 3.0. |
SSD : High Endurance and Standard Endurance options.
SSD sizes available from 64Gb to 1TB |
| RAM |
8GByte, 16GByte & 32Gbyte & 64Gbyte |
| LAN |
2 x Intel I225-LM ( 10/100/1000 mbps) |
| WI-FI (OPTION) |
IEEE 802.11 ac/a/b/g/n (2.4GHz and 5GHz) |
| BLUETOOTH (OPTION) |
V5.2 |
| USB |
2 x USB 2.0 |
| SERIAL COMMUNICATION |
2 x COM ports.
Supporting RS232, RS422 or RS485) |
| I/O PLATE |
Interchangeable bottom or rear mounted.
Cable glands or connectors are optional. |
| INGRESS PROTECTION |
IP66 / NEMA4X. |
| OPERATING TEMPERATURES |
-40°C to +60°C (-40°F to +140°F) |
| STORAGE TEMPERATURES |
-40°C to +85°C (-40°F to +185°F) |
| HUMIDITY |
10 – 90% non-condensing (operating) |
| MAX DIMENSIONS |
W408mm (16.06”) x *H254mm (10”) x D101mm (3.98”)
Optional lifting handle increases height to 274mm (10.79”) |
| WEIGHT |
9kg/19.8lbs excluding connectors, cables, and accessories |
| MOUNTING OPTIONS |

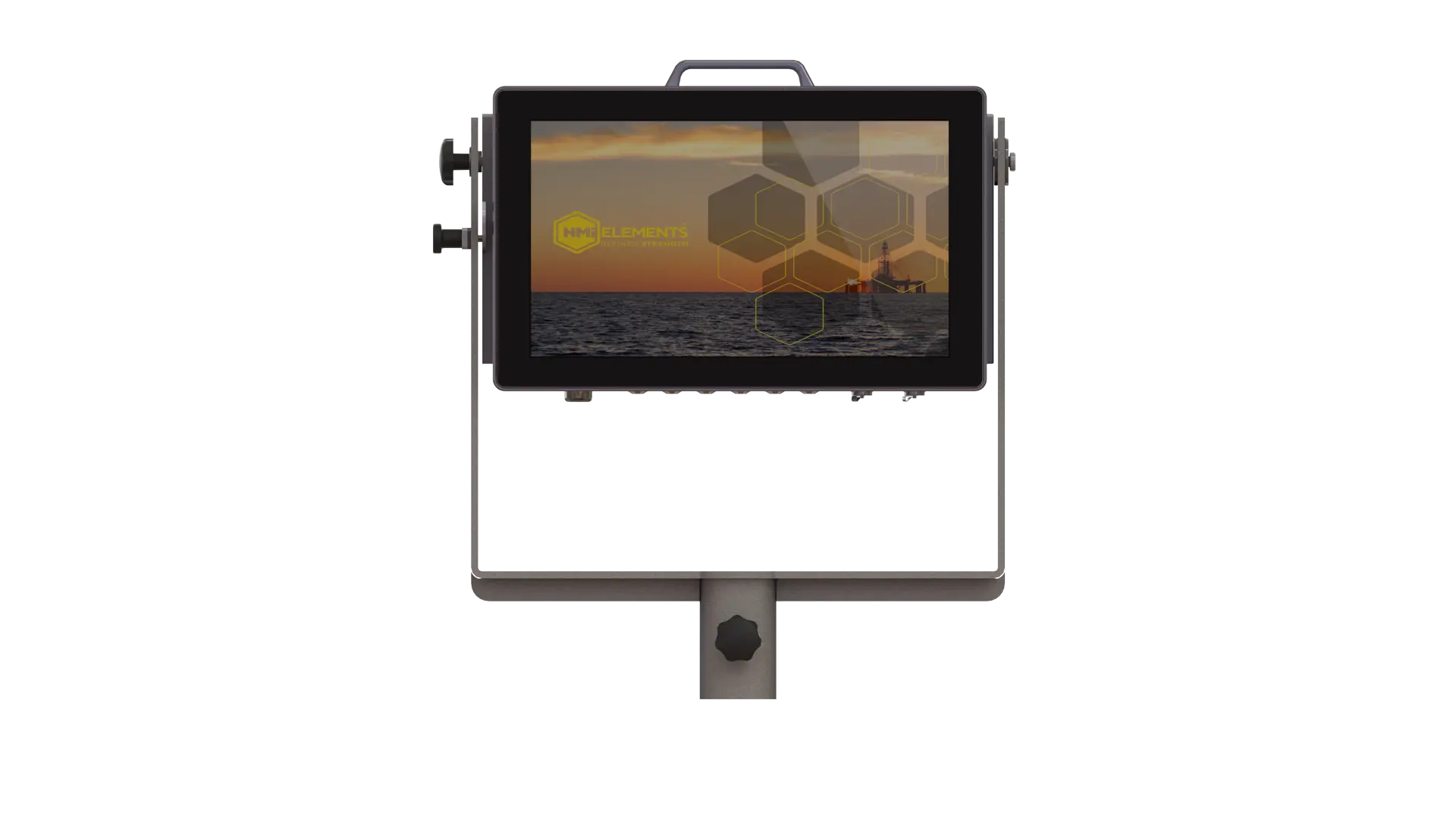

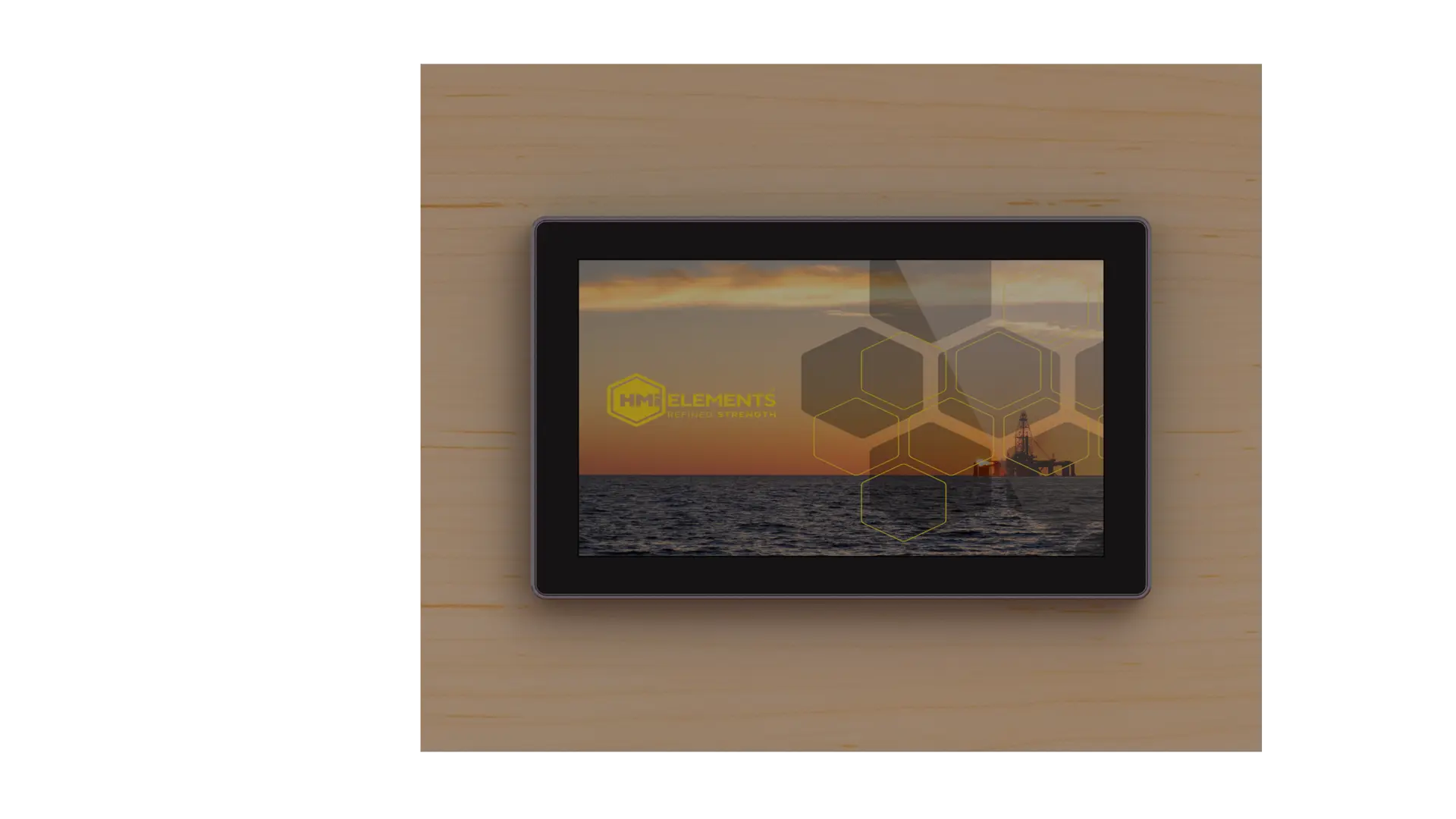

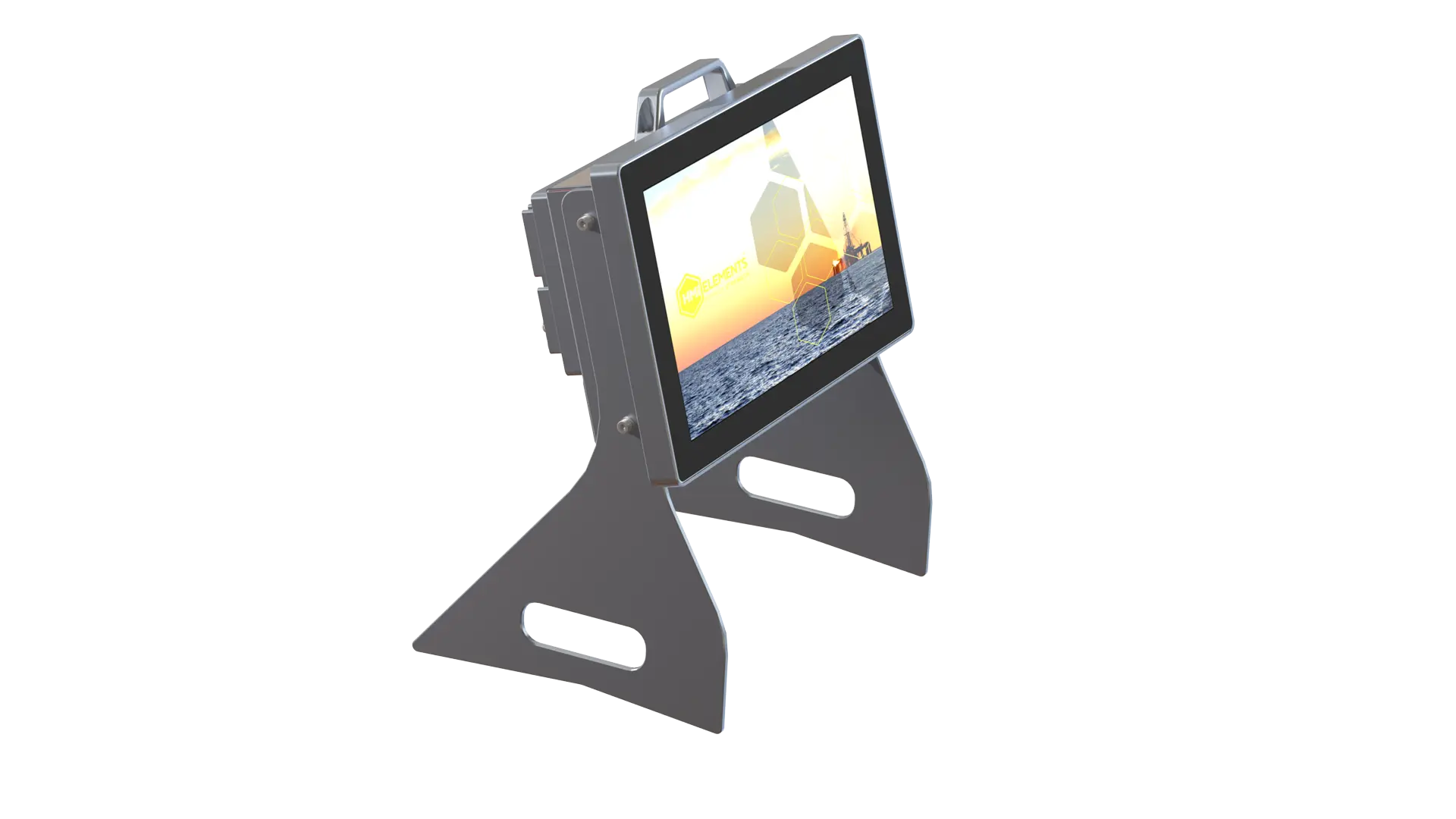

VESA (100mm x 100mm), Yoke, Panel, Desktop |

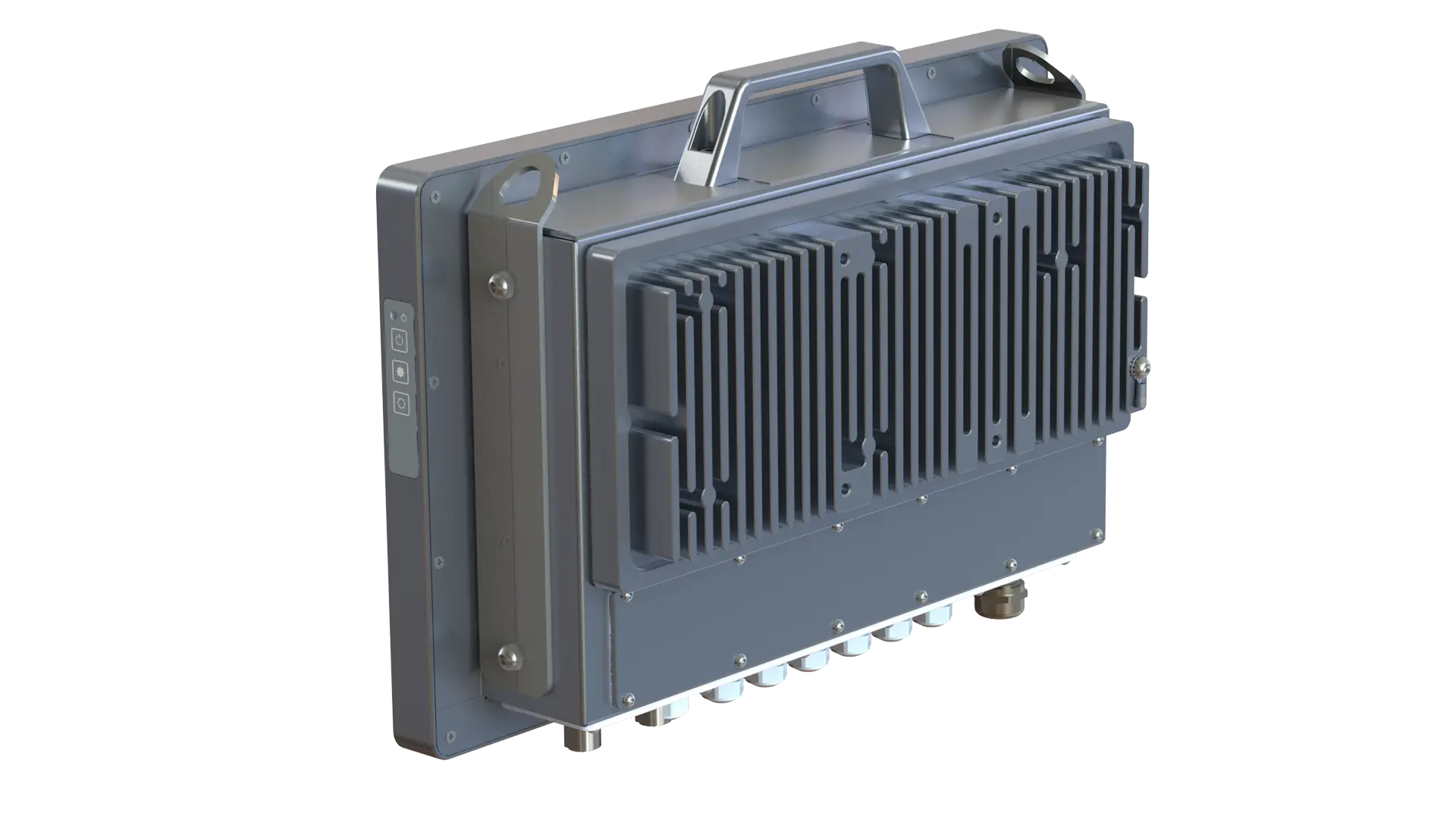

| LIFTING OPTIONS |
Top mounting Lifting handle available |
| EMC |
Emissions/Immunity : Class A Certified under EN55032, EN55035, FCC
Radio : ESTI EN301489 |
